Commercial buildings rely heavily on HVAC systems, which can account for up to 40% of total energy consumption in offices, retail centers, and hospitality venues. As fans work harder to overcome airflow resistance, energy costs rise—and so do maintenance demands.
Selecting the right filter media is a pivotal decision: energy-efficient filters maintain high particulate capture while minimizing pressure drop, translating directly into lower fan power requirements and reduced utility bills.
By optimizing filter change-out intervals and media type, facility managers can achieve notable commercial HVAC energy savings without sacrificing indoor air quality or system performance. In this guide, we’ll explore strategies for balancing filter efficiency against operating costs.

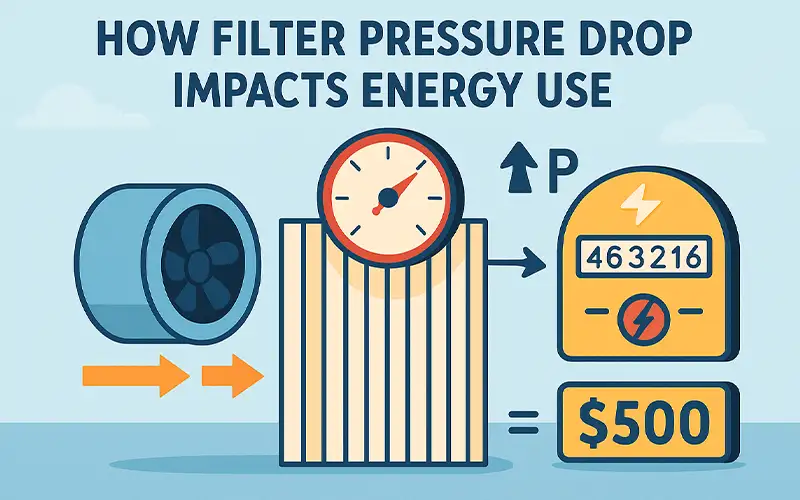

How Filter Pressure Drop Impacts Energy Use
What Is Filter Pressure Drop?
Filter pressure drop (ΔP) is the resistance a filter media adds to airflow, measured in pascals (Pa). A clean filter might start at 150 Pa, but as particles accumulate, ΔP can double—forcing the system to work harder.
Pressure Drop’s Effect on Fan Power
Fan power (P) is directly proportional to ΔP at a constant airflow (Q):
P=ηQ×ΔP
where η is fan efficiency. When ΔP increases, the fan must draw more electrical power to maintain the same commercial HVAC energy savings, driving up operating costs.
Example: Calculating Energy Savings from Lower ΔP
For Q = 2 m³/s and η = 0.6, raising ΔP from 150 Pa to 300 Pa requires extra power:
Over 10,000 hours/year, that’s 5,000 kWh—about $500 at $0.10/kWh. By using energy-efficient filters with a lower initial ΔP and timely change-outs, you can achieve significant filter pressure drop reductions and realize real cost savings.

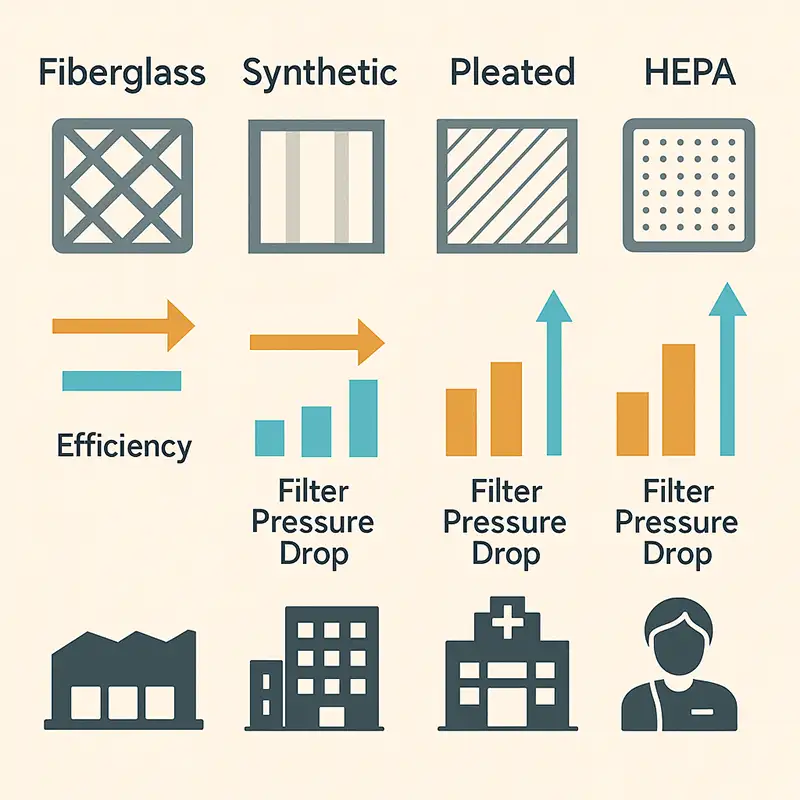

Comparing Filter Media Types
Commercial HVAC systems offer a range of filter media—each with distinct efficiency and filter pressure drop characteristics that influence energy use and indoor air quality.
Fiberglass Panels:
Efficiency: Low (MERV 1–4)
ΔP: Very low (50–100 Pa clean)
Trade-off: Minimal airflow resistance keeps fan power low, but limited particle capture.
Applications: Pre-filtration in large retail spaces or warehouses where coarse dust is primary concern.
Synthetic Media:
Efficiency: Moderate (MERV 8–11)
ΔP: Low to moderate (100–150 Pa clean)
Trade-off: Enhanced dust-holding capacity extends service life, with modest energy impact.
Applications: General office buildings and light-duty commercial facilities.
Pleated Filters:
Efficiency: High (MERV 13–15)
ΔP: Moderate to high (150–250 Pa clean)
Trade-off: Greater surface area boosts particle capture (including PM₂.₅) at the expense of increased ΔP.
Applications: Healthcare clinics, lab environments, and school HVAC intakes requiring finer filtration.
HEPA Filters:
Efficiency: Very high (≥99.97% at 0.3 µm)
ΔP: High (200–400 Pa clean)
Trade-off: Exceptional air cleanliness comes with substantial energy costs and often requires booster fans.
Applications: Clean rooms, pharmaceutical manufacturing, and specialized data-center cooling.
Recommendations:
Use fiberglass or synthetic panels as prefilters to protect higher-efficiency stages without incurring large filter pressure drop penalties.
Deploy pleated filters for demanding commercial applications where PM₂.₅ control is critical.
Reserve HEPA for mission-critical environments where air purity outweighs operating-cost concerns.
Clean-Link Offers Quality Filter Solutions for HVAC Systems in Commercial Industry
Ceiling Filter Media
· G3, G4; MERV5, MERV6
· Synthetic fibers
· Easy to replace
· Fluffy and bouncy structure allows stable airflow rate
· Longer filter life span to reduce maintenance cost
Pre-Filter Media
· G2, G3, G4; MERV5, MERV6, MERV7, MERV8
· 100% synthetic fibers
· Efficient, cost-saving, exceptional filter medium
· Blocking larger particulate
· Protecting the higher efficiency filters downstream
Air Inlet Filter Medium
· G3, G4; MERV5, MERV6
· Pre-filter media
· High dust-holding capacity
· Multi-layer structure improves filter function
· Longer filter service life than other types of media
· Easy to install

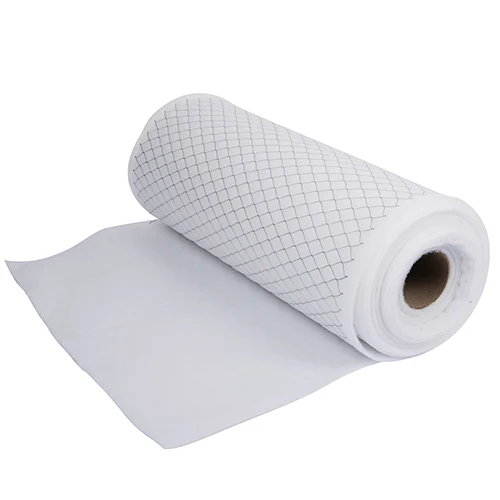

Laminated Filter Media
· G3, G4, M5, M6, F7, F8, F9
· Reinforced PET fibers
· Filter media for coarse stage or pre-filters
· High dust-holding capacity
· Surface reinforced structure
· Excellent particle capture performance
V-Bank Filters
· M6, F7, F8, F9, H10-H14
· Synthetic fiber medium
· Sturdy structure and rigid frame
· Low weight and easy to handle
· Extended large filter area for better performance
Activated Carbon Filters
· G3, G4
· Activated carbon fiber and filter media
· Removes odors and block larger particles
· Cost-effective
· Withstanding up to 80°C

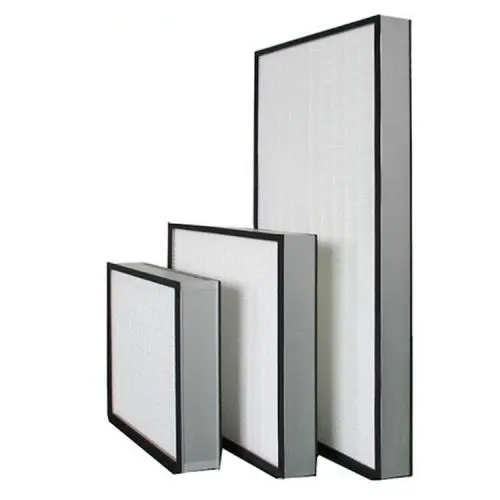

HEPA Mini-Pleat Filters
· H13, H14, U15, U16
· Complete and reliable seal prevents air bypass
· Pleat filter media design offers excellent performance
· Cost-effective
· Easy handling and assembly
Pocket Filters
· M5, M6, F7, F8, F9
· Glass fibers
· Lightweight with a robust frame
· Extra filtration area
· Higher particulate capture rate
· Customizable multiple-bag design

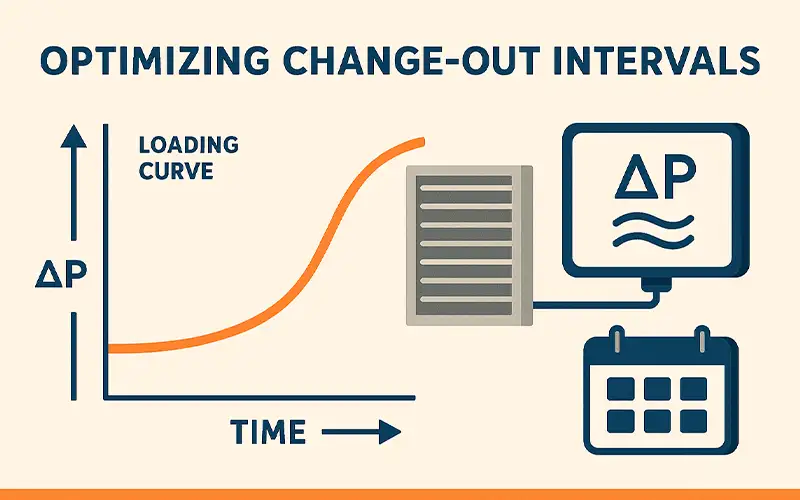

Optimizing Change-Out Intervals
Understanding Filter Loading Curves
As a filter captures particles, its resistance to airflow increases. Plotting differential pressure (ΔP) against operating hours produces a loading curve: a gradual rise during clean conditions, followed by a steep climb as the media clogs. Recognizing the inflection point where ΔP accelerates helps avoid excessive energy consumption and fan stress.
Best Practices for Differential Pressure Monitoring
Install pressure sensors upstream and downstream of the filter bank to track real-time ΔP. Integrate these sensors with your building automation system to generate alerts when ΔP approaches a set threshold (often 75–80% of the maximum allowable pressure drop). Regularly review logged data to validate loading trends and detect anomalies.
Scheduling Replacements and Cleaning
Use the loading-curve data and sensor alerts to establish thresholds for filter change-outs. Rather than a fixed calendar schedule, adopt a condition-based approach: replace or clean filters when ΔP rises by 30–50 Pa above the clean-media baseline. This strategy balances filter life, maintains target airflow, and minimizes unnecessary filter waste while ensuring optimal energy performance.
Balancing Initial Costs and Long-Term Savings
Upfront Costs vs. Lifecycle Expenses
When selecting filter media, facility managers must weigh the purchase price against ongoing energy and maintenance expenses.
Cheaper, standard filters may cost $10 each but typically exhibit higher initial ΔP, driving up fan power use and increasing annual energy bills. In contrast, high-efficiency pleated filters might cost $30 apiece yet feature a lower clean-media ΔP and superior dust-holding capacity, reducing both energy consumption and replacement frequency.
ROI Comparison: Standard vs. High-Efficiency Filters
Consider a medium-sized office using one filter bank:
Standard filter: $10 cost, adds 500 W of extra fan power when loaded → $500/year in energy costs (10,000 hrs at $0.10/kWh)
High-efficiency filter: $30 cost, reduces extra power by 200 W → $200/year energy costs
Despite a $20 higher media cost, the high-efficiency option nets $180 in first-year savings and continues delivering commercial HVAC energy savings in subsequent years.
Making the Investment Decision
By calculating total lifecycle costs—including filter price, disposal fees, and energy use—managers can justify the slightly higher investment in energy-efficient filters with clear bottom-line benefits and sustained savings over time.

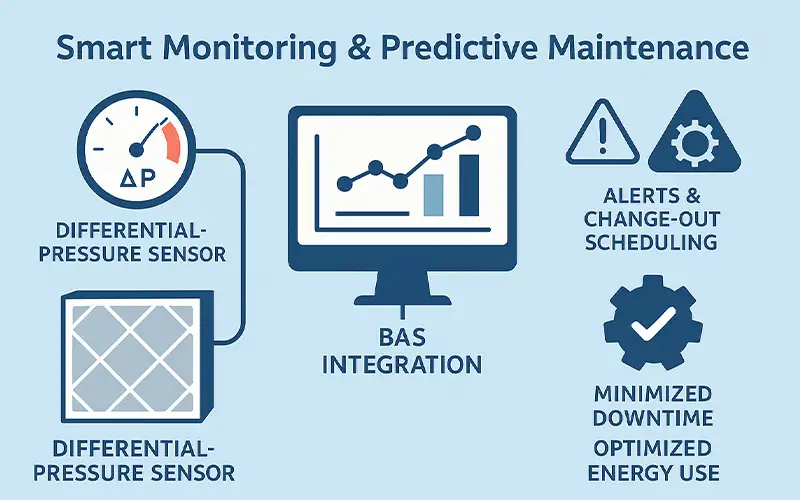

Smart Monitoring & Predictive Maintenance
Differential-Pressure Sensors & BAS Integration
Integrating differential-pressure sensors with your building automation system (BAS) provides continuous insight into filter performance.
Sensors mounted upstream and downstream of filter banks measure ΔP in real time, feeding data into the BAS dashboard.
This seamless connection enables facility teams to visualize loading trends alongside temperature, humidity, and airflow metrics.
Benefits: Minimized Downtime & Optimized Energy Use
Smart monitoring drives predictive maintenance, reducing emergency shutdowns and unplanned filter swaps. By replacing filters precisely when needed, systems run at peak efficiency, lowering fan energy consumption and extending filter life.
Final Thoughts
By carefully selecting filter media and optimizing change-out intervals, facility managers can align filtration strategy with energy efficiency objectives.
Choosing lower initial ΔP filters and leveraging loading-curve data ensures reduced fan power use and extended filter life.
Next Steps:
Audit your existing filter setup to identify high-pressure-drop stages.
Consult filtration experts to match media types and housing designs to your system conditions.
Deploy differential-pressure sensors and integrate them with your BAS for condition-based change-outs.
Taking these actions will unlock measurable commercial HVAC energy savings and maintain peak system performance.
Still not sure about choosing the right air filtration system for your swine facilities? Contact Clean-Link’s expert team for the answer. We’re here to help you with any concerns regarding air filters.
