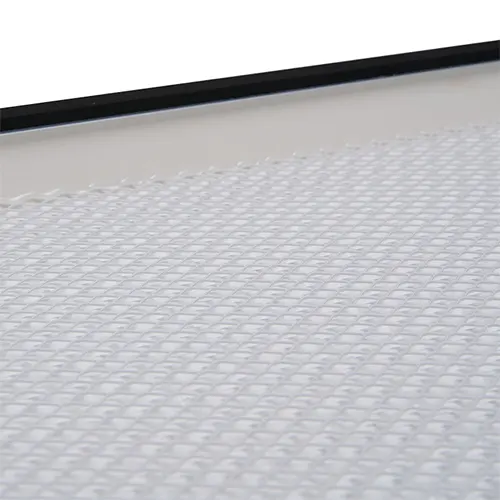

Detail view of CleanLink's mini pleat HEPA air filter

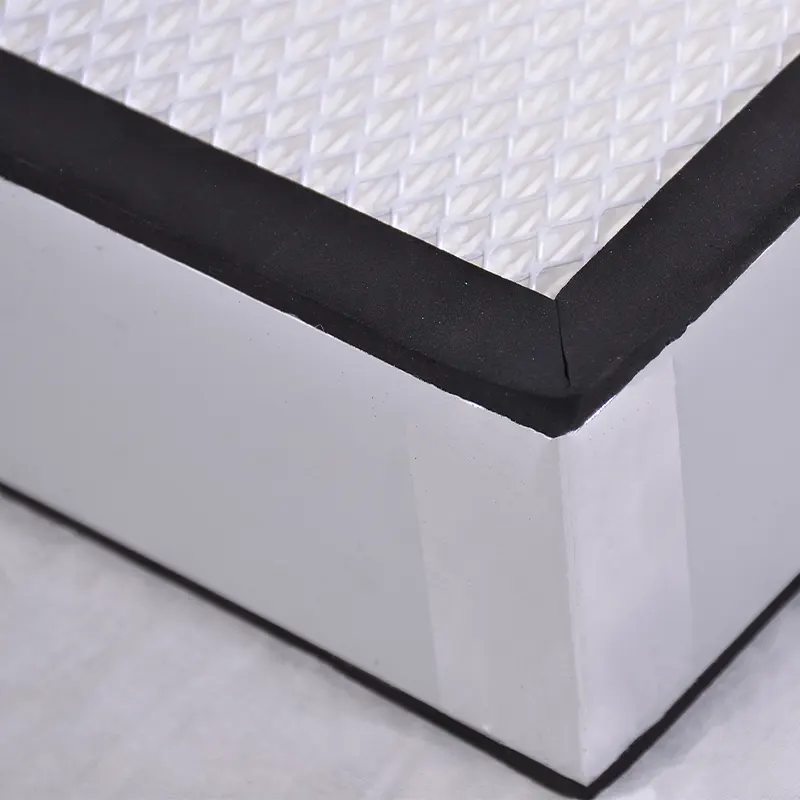

The detailed view of the outer frame of CleanLink's HEPA mini pleat filter

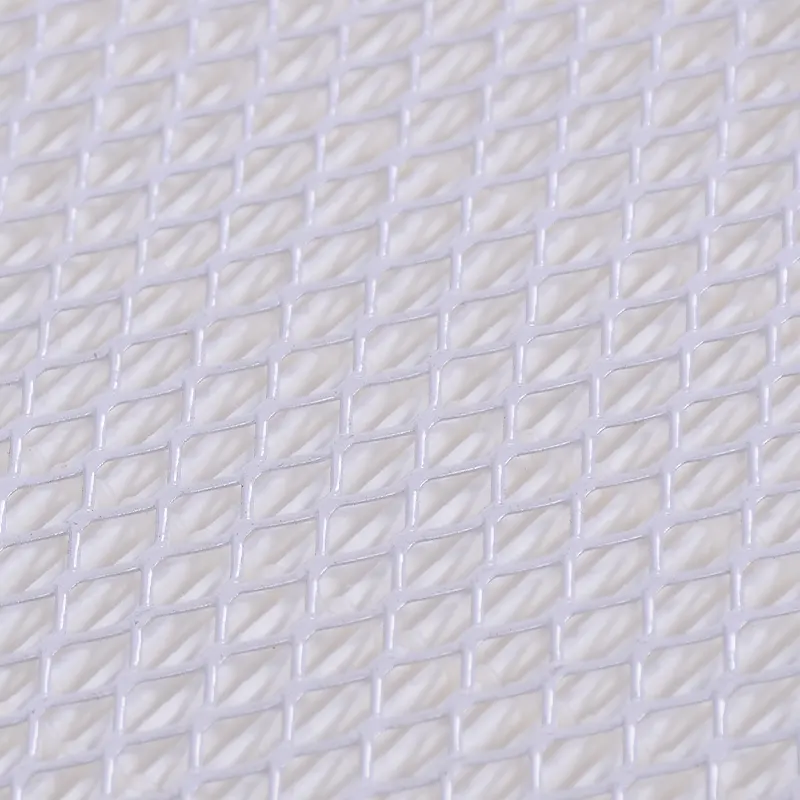

A close look at the surface metal net on CleanLink's HEPA Mini pleat filter
CleanLink's mini pleat HEPA air filter
Detail view of CleanLink's mini pleat HEPA air filter
The detailed view of the outer frame of CleanLink's HEPA mini pleat filter
A close look at the surface metal net on CleanLink's HEPA Mini pleat filter

Mini-Pleat HEPA Filter

A mini-pleated air filter is a type of air filter that features tightly packed pleats for increased surface area and higher filtration efficiency. Clean-Link’s mini pleat filters are constructed with high-efficiency PP paper or fiberglass filter media that is waterproof and flame retardant, giving the filter a compact design and higher dust-holding capacity.

To eliminate air bypass and form a rigid structure, a type of adhesive is applied to ensure no gaps between the media and the frame. Every piece is tested with a laser scanning device to ensure its heat resistance of 80°C. The well-designed aerodynamics structure allows a low air pressure drop, leading to a strong airflow and better ventilation.

As a supplier of mini pleat hepa filters, Clean-Link has invested in the filter performance. These mini pleat air filters have multiple times higher filter surfaces compared to other types of filters, contributing to high filter performance and longer service life so that you can replace the filters less often.

Features:

  • Grade: H13, H14, U15, U16; UH17, UH18, UH19, UH20
  • MERV17, MERV18, MERV19, MERV20
  • 99.9995% efficiency capture of particles that are 0.3 microns
  • As the main filter in the filter systems
  • Material: Ultrafine glass fibers or HE PP Paper
  • Heat-Resistant 80°C
  • Frame options: aluminum, stainless, and galvanized steel
  • See the below chart for standard sizes
  • Customizable filter sizes and specifications for special requirements
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ

icon_gou

Ship Globally

Applications:

· High-demanded air quality applications, such as hospitals, data centers, food processing, semiconductor manufacturing, electronics production, cleanrooms, and more.

Technical Data

Document Download

Mini-Pleat HEPA Filter.pdf



Specifications

Filter Media Ultrafine glass fiber filter
Frame Material Aluminum / Galvanized / Stainless Steel
Sealants Pu two-component polyurethane adhesive
Sealing Type EVA / EPDM of Polyurethane foam sealant
Optional Thickness (mm) 46 / 50 / 69 / 90 / 100
Maximum Temperature 70°C
Maximum Humidity 100%

Filtration Grade Dimensions (mm) W*H* D Filter Area (㎡) Rated Air Flow (m³/h) Wind Velocity Test (m/s) Initial Resistance (Pa) Final Resistance (Pa)
H13 610*610*50 7.61 450 0.35 110 250
H13 915*610*50 11.29 680 0.35 110 250
H13 610*610*69 9.89 600 0.45 100 200
H13 915*610*69 23.19 896 0.45 100 200
H13 1170*570*69 25.21 1080 0.45 100 200
H13 1220*610*100 30.76 1200 0.45 85 180
H13 1170*1170*100 32.28 2180 0.45 85 180
H14 610*610*50 7.61 450 0.35 115 250
H14 915*610*50 11.29 680 0.35 115 250
H14 610*610*69 9.89 600 0.45 110 230
H14 915*610*69 23.19 896 0.45 110 230
H14 1170*570*69 25.21 1080 0.45 110 230
H14 1220*610*100 30.76 1200 0.45 90 180
H14 1170*1170*100 32.28 2180 0.45 90 180
U15 610*610*50 7.61 450 0.35 145 300
U15 915*610*50 11.29 680 0.35 145 300
U15 610*610*69 9.89 600 0.45 130 260
U15 915*610*69 23.19 896 0.45 130 260
U15 1170*570*69 25.21 1080 0.45 130 260
U15 1220*610*100 30.76 1200 0.45 100 200
U15 1170*1170*100 32.28 2180 0.45 100 200
U16 610*610*50 7.61 450 0.35 158 350
U16 915*610*50 11.29 680 0.35 158 350
U16 610*610*69 9.89 600 0.45 148 300
U16 915*610*69 23.19 896 0.45 148 300
U16 1170*570*69 25.21 1080 0.45 148 300
U16 1220*610*100 30.76 1200 0.45 110 250
U16 1170*1170*100 32.28 2180 0.45 110 250
Efficient: 99.9995%@0.3μm                  Super efficient: 99.99995%@0.3μm



Filter Customization

Please send us your requirements to get custom sizes and thicknesses.
