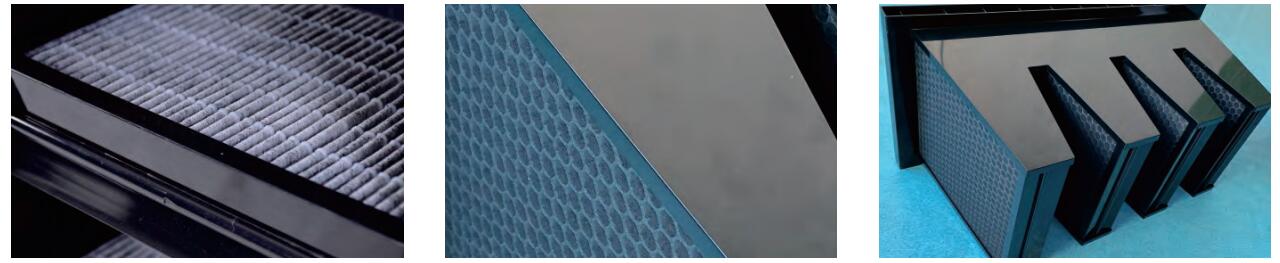

V-Bank Activated Carbon Filter

These V-bank activated carbon air filters feature a V-shaped design with deep structure filled with high-quality granular activated carbon or consisted of impregnated carbon fibers.
This unique configuration maximizes the contact surface area between air and carbon, making them exceptionally effective in adsorbing and eliminating odors, gases, and volatile organic compounds (VOCs) from the air.

Features:

  • Grade: G4, F5, F6
  • Frame options: Plastic(ABS), Galvanized or stainless steel
  • Filtration material: carbon-impregnated fibers/carbon granules
  • Robust and durable structure for demanding applications
  • Large surface area with excellent adsorption capability
  • Effectively remove odors, gases, and VOCs with low-pressure drop
icon_gou

Free Sample

icon_gou

Customization Availabele

icon_gou

Low MOQ

icon_gou

Ship Globally

V-Bank Activated Carbon Air Filter Applications:

· Commercial buildings: used in commercial HVAC systems to eliminate odors from cooking, smoking areas, and chemical emissions.

· Industrial Settings: manufacturing plants, refineries, and chemical processing facilities, to remove noxious fumes, chemical odors, and hazardous airborne contaminants.

· Healthcare Facilities, pharmaceuticals, food Processing.

Specifications

Grades of Adsorbed Materials

Substance Type Filter Media Target
Acid A Activated carbon + non-woven fabric Vulcanized acid, sulfuric acid, acetic acid, organic acid, etc
Alkaline B Activated carbon + non-woven fabric Ammonia, nitrogen, etc
Organic C Activated carbon + non-woven fabric Organic solvents, ozone, organic acids, carbon dioxide, etc

Material And Operation Conditions

Filter Media Activated carbon impregnated fibers/particles
Frame ABS plastic / Galvanized / Stainless Steel
Material Separation Hot melt adhesive / cellular network
Sealants PU dual-component polyurethane adhesive
Sealing strips Silicon sponge
Condition Of Use Maximum continuous use temperature (℃) 40
The highest temperature at the
moment of use (%RH)
70 (not exposed)

Dimensions (mm) W*H* D Filtration Area (㎡) Airflow and initial resistance at different wind speeds
Area Flow (m³/h) Initial Resistance (Pa) Area Flow (m³/h) Initial Resistance (Pa)
287*287*292/2V 4.58 750 75 900 90
490*287*292/3V 8.13 1300 75 1550 90
592*287*292/4V 9.91 1600 75 1900 90
287*490*292/2V 6.87 1100 75 1300 90
490*490*292/3V 12.20 2000 75 2400 90
592*490*292/4V 14.87 2400 75 2900 90
287*592*292/2V 9.16 1650 75 2000 90
490*592*292/3V 16.26 2650 75 3400 90
592*592*292/4V 19.83 3400 75 4100 90
Adsorption of odor: >95%



Document Download

V-Bank Activated Carbon Filter.pdf



Filter Customization

Please send us your requirements to get custom sizes and thicknesses.
