Fiberglass Pocket Filter

The fiberglass pocket/bag filters feature multiple pockets made of high-quality fiberglass filter media, offering superior particle capture efficiency.

These filters are highly efficient in removing dust, pollen, mold spores, and other airborne contaminants, making them suitable for various applications.

The ample surface area provided by the pocket design prolongs their lifespan and ensures efficient particle retention. These fiberglass pocket filters maintain minimal airflow resistance, promoting energy-efficient operation in HVAC systems.

With their durable construction and long service life, fiberglass pocket air filters are a smart choice for maintaining clean and healthy indoor air while minimizing maintenance costs.

Features:

  • Filter Grade: G4, M5, M6, F7, F8, F9
  • MERV7, MERV8, MERV9, MERV10, MERV11, MERV12, MERV13, MERV14
  • Filtration Media: fiberglass fibers
  • Frame options: Galvanized steel or aluminum
  • Substantial filter surface area with high dust-holding capacity
  • Sturdy frame and durable construction
  • No air bypass or leaks at the connection
  • Low initial airflow resistance
  • Compliant with UL-2 and withstanding temperature up to 150℃
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ

icon_gou

Ship Globally

Fiberglass Pocket/Bag Air Filter Applications:

· Commercial Buildings: offices, retail spaces, restaurants, and other commercial establishments

· Industrial Facilities: manufacturing plants, factories, and other industrial settings

· Healthcare Facilities: maintain sterile conditions, prevent the spread of pathogens, and safeguard sensitive medical equipment

· Serves as the main stage filter in HVAC systems

· For Cleanrooms, this bag filter can act as a pre-filter

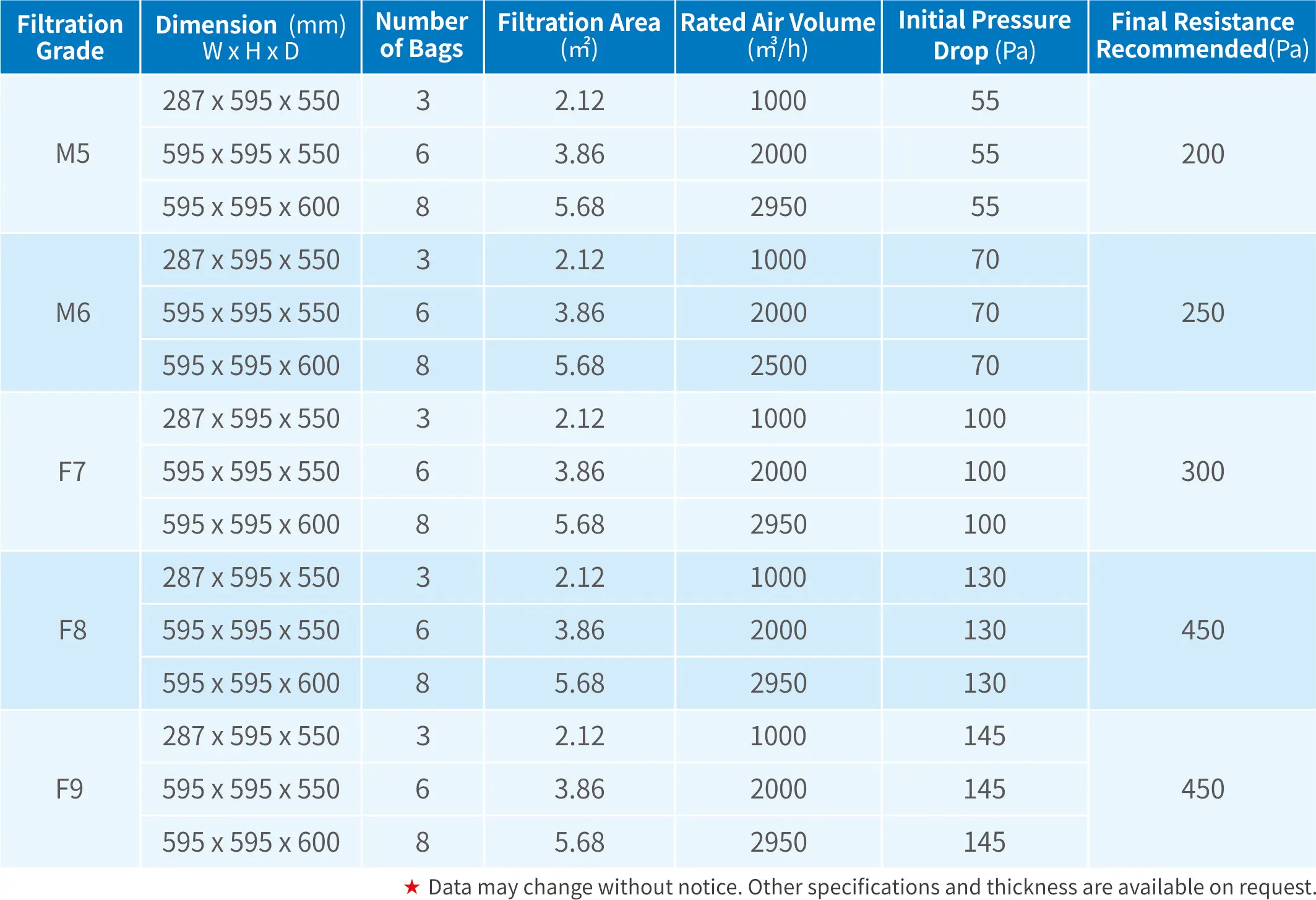

Specifications



Filtration Grade Dimensions (mm) W*H* D Number of Bags Filtration Area (㎡) Rated Air Volume (m³/h) Initial Resistance (Pa) Final Resistance (Pa)
M5 287*595*550 3 2.12 1000 55 200
M5 595*595*550 6 3.86 2000 55
M5 595*595*600 8 5.68 2950 55
M6 287*595*550 3 2.12 1000 70 250
M6 595*595*550 6 3.86 2000 70
M6 595*595*600 8 5.68 2500 70
F7 287*595*550 3 2.12 1000 100 300
F7 595*595*550 6 3.86 2000 100
F7 595*595*600 8 5.68 2950 100
F8 287*595*550 3 2.12 1000 130 450
F8 595*595*550 6 3.86 2000 130
F8 595*595*600 8 5.68 2950 130
F9 287*595*550 3 2.12 1000 145 450
F9 595*595*550 6 3.86 2000 145
F9 595*595*600 8 5.68 2950 145

Document Download

Fiberglass Pocket Filter.pdf



Filter Customization

Please send us your requirements for custom sizes and thicknesses.
