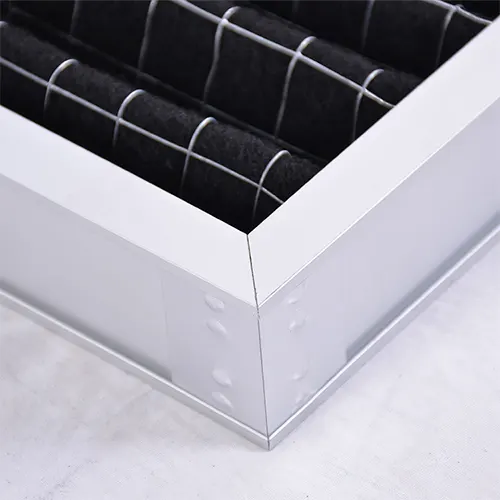

Frame details of activated carbon pleat panel filter

Activated Carbon Pleat Panel Filter

Activated carbon panel pleat air filters combine the particulate filtration capabilities of panel and pleat filters with the exceptional odor and gas removal properties of activated carbon.
The pleated design offers a larger surface area, enhancing filtration efficiency and prolonging the filter's lifespan. Activated carbon within the filter effectively adsorbs and neutralizes a variety of contaminants, including volatile organic compounds (VOCs), noxious odors, and harmful gases.

Features:

  • Grade: G3, G4
  • Frame options: Galvanized steel, aluminum, and cardboard
  • Filtration material: activated carbon fiber
  • Excellent removal of both particulate matter and gaseous contaminants
  • The pleated design increases the surface area for better particle capture
  • Low-pressure loss at the initial stage
  • Withstanding temperature and humidity up to 80°C and 100% respectively
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ

icon_gou

Ship Globally

Activated Carbon Pleat Panel Filter Applications:

· Commercial and Industrial HVAC Systems;

· Cleanrooms, laboratories, hospitals, and healthcare Facilities.

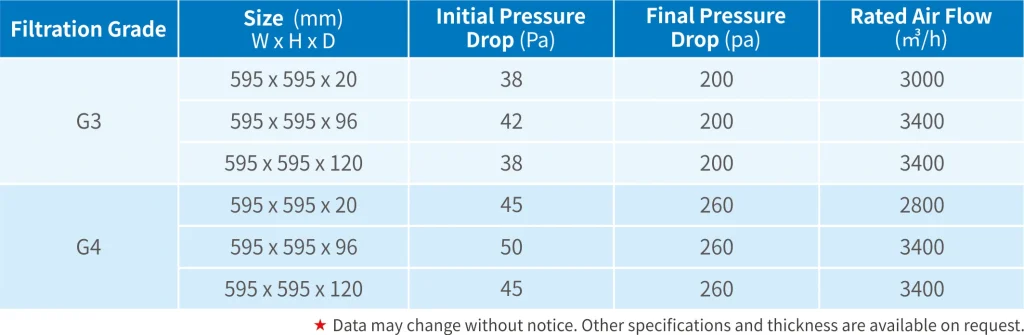

Specifications



Filtration Grade Dimensions (mm) W*H* D Initial Resistance (Pa) Final Resistance (Pa) Rated Air Flow (m³/h)
G3 595*595*20 38 200 3000
G3 595*595*96 42 200 3400
G3 595*595*120 38 200 3400
G4 595*595*20 45 260 2800
G4 595*595*96 50 260 3400
G4 595*595*120 45 260 3400



Document Download

Activated Carbon Pleat Panel Filter.pdf



Filter Customization

Please send us your requirements for custom sizes and thicknesses.
