CleanLink's Ceiling Filter S-600G
CleanLink's Ceiling Filter S-600G

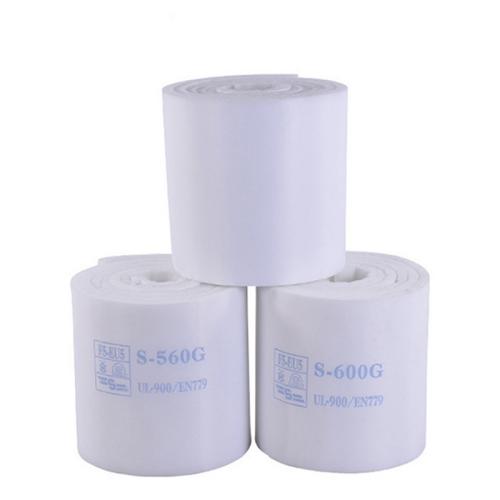

Paint Booth Ceiling Filter Media S-600G

ltem No.: S-600G

This paint booth ceiling filter media is a high-performance solution for maintaining clean and safe air in paint booths. Made from 100% polyester fibers, it offers exceptional durability and filtration efficiency. The progressive density layering structure ensures effective capture and removal of overspray, dust, and contaminants from the air.

With a temperature resistance of up to 100°C, it withstands the demanding conditions of paint booth environments. The addition of a tacky mesh layer reinforces the outlet side, enhancing durability and performance. This media exhibits a high dust holding capacity while maintaining low air pressure drop, ensuring optimal airflow and energy efficiency.

It serves as an excellent paint overspray arrestor, contributing to superior paint finish results. It meets strict fire safety and filtration performance requirements. Experience the reliability and quality of our paint booth ceiling filter media for a cleaner and more productive painting environment.

Features:

  • Grade: M5; MERV9, MERV10
  • Made of 100% polyester fibers
  • Progressive density layering Structure
  • Withstanding temperatures as high as 100°C
  • A tacky mesh layer reinforces the outlet side of the filter media
  • Capture and remove overspray, dust, and other contaminants from the air in paint booths
  • High dust holding capacity, low air pressure drop, excellent paint overspray arrestor
  • Compliant with DIN 53438-F1 and UL900-Class2
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ: 1 Roll

icon_gou

Ship Globally

Applications:

1. Automotive paint booth and refinishing workshop

2. Industrial painting

3. Aerospace industry

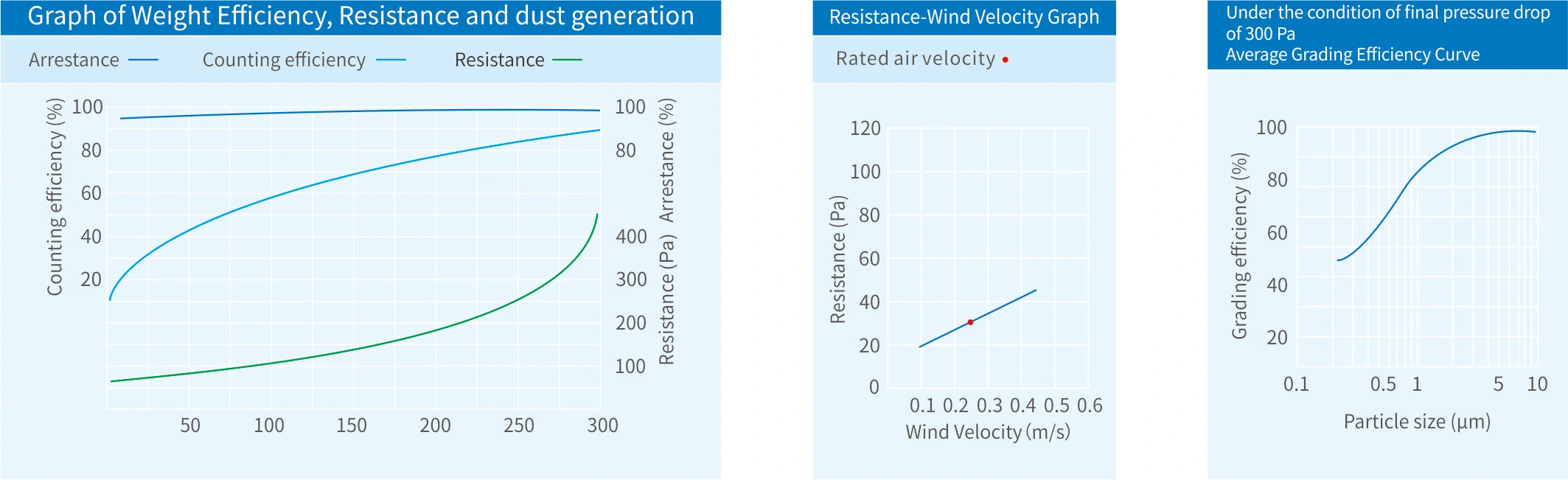

Technical Data

Document Download

Paint Booth Ceiling Filter Media S-560G.pdf

Paint Booth Ceiling Filter Media S-600G.pdf



Specifications

Material 100% POLYESTER FIBRES
Model S-600G
Normal Thickness (mm) 20±3
Weight (g/㎡) 600
Wind Velocity Test (m/s) 0.25
Initial Resistance (Pa) 30
Final Resistance (Pa) 450
Average Weight Efficiency 96%
Rated Air Flow (m³/h) 900
Dust Holding Capacity (g/㎡) 450
Temperature Resistance (℃) 100
Filtration Grade M5

Filter Customization

Please send us your requirements to get custom sizes and thicknesses.
