Paint Booth Ceiling Filter Media C-600G

ltem No.: C-600G

C-600G is engineered to be flame-retardant, withstanding temperatures as high as 120°C. The outer side of the media where cleaner air comes out, is covered by a layer of fire-resistant material.

This media is thermally bonded and constructed in a progressive density to perform better overspray filtration. The multiple layering structure maintains high dust holding capacity while ensuring lowest pressure drop performance.

Constructed from 100% polyester fibers, it’s gone through a process that is fully impregnated with formulating adhesives to increase tack on every single string of the media, resulting in an excellent overspray capturing capability. Particles or overspray are held by this tacky and progressively densified structure, which is ideal for forming even and steady airflow in the paint booth.

Features:

  • Filter Grade: M5; MERV9, MERV10
  • Made of 100% polyester fibers
  • Gradient density layering Structure
  • Fully impregnated with adhesive tackifier
  • The outlet side of the filter media is reinforced by a flame-retardant layer
  • High dust holding capacity, excellent overspray arrestor
  • Compliant with DIN 53438-F1 and UL900-Class2
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ: 1 Roll

icon_gou

Ship Globally

Applications:

1. Usually installed on the ceiling of industrial or commercial paint spray booths;

2. For use in HVAC systems in electronics manufacturing, food processing, smelting, and chemical industry.

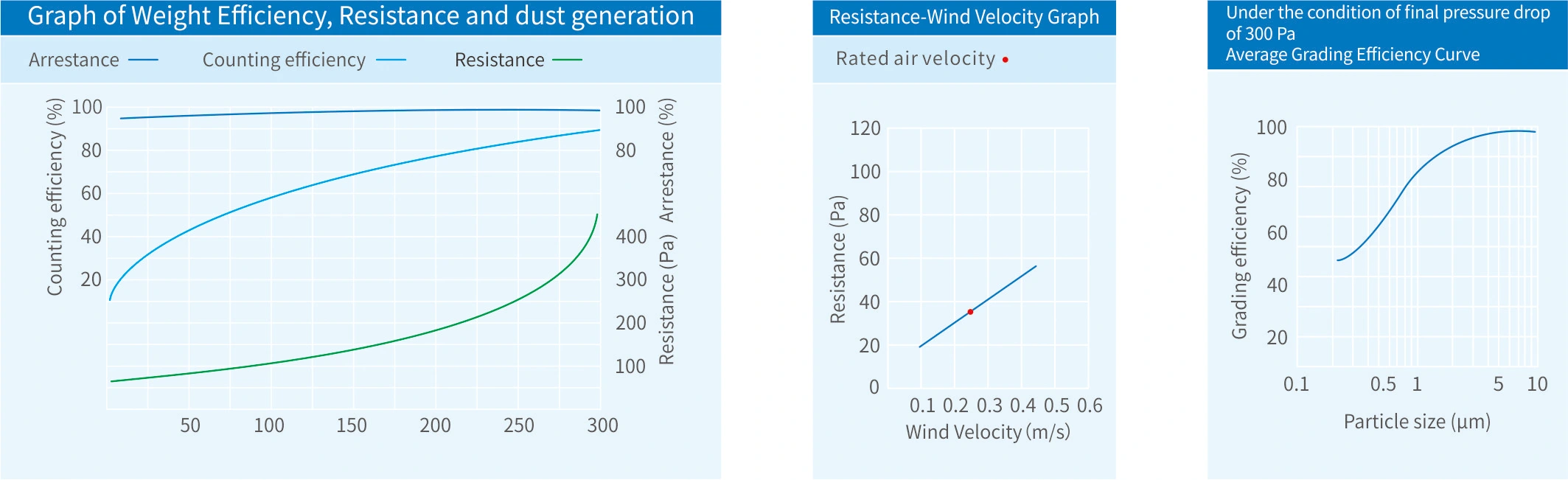

Technical Data

Document Download

Paint Booth Ceiling Filter Media C-600G.pdf

Paint Booth Ceiling Filter Media CL-600G.pdf



Specifications

Material 100% POLYESTER FIBRES
Model C-600G
Normal Thickness (mm) 20±3
Weight (g/㎡) 600
Wind Velocity Test (m/s) 0.25
Initial Resistance (Pa) 30
Final Resistance (Pa) 400
Average Weight Efficiency 96%
Rated Air Flow (m³/h) 900
Dust Holding Capacity (g/㎡) 450
Filtration Grade M5



Send us your requirements to get custom sizes and thicknesses.
