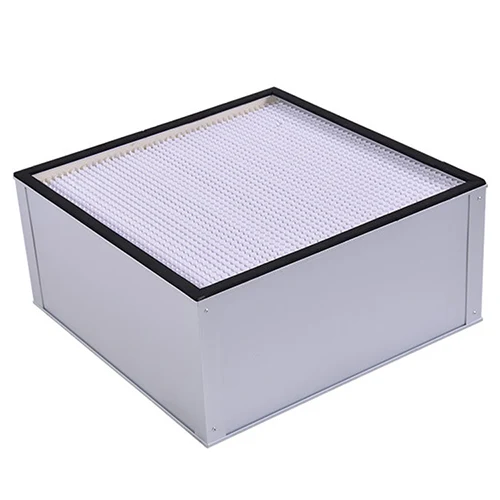

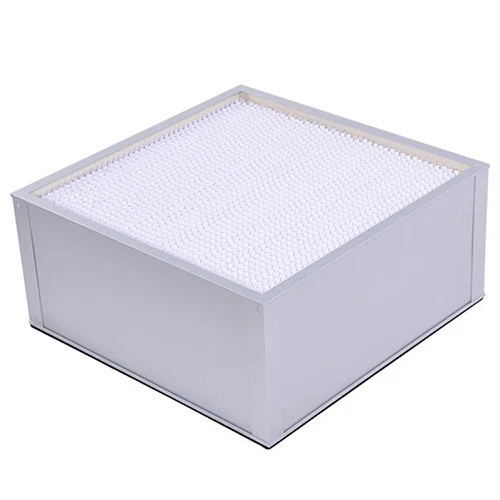

Pleated HEPA Filter

The Pleated HEPA Filter is a cutting-edge air filtration solution designed to capture a minimum of 99.97% of particles 0.3 microns in diameter, such as dust, pollen, and bacteria. Its unique pleated structure maximizes filter surface area, allowing for greater airflow and extended filter life.

These filters feature a pleated, extended surface area design that allows for maximum particle capture while maintaining optimal airflow.

Features:

  • Grade: M6, F7, F8, F9, H10, H13, H14
  • MERV11, MERV12, MERV13, MERV14, MERV15, MERV16-19
  • Filter media: High-density paper made with ultra-fine glass fiber
  • Frame options: Galvanized steel, aluminum, or ABS plastic
  • Waviness aluminum foil pleats or paper pleats can make the best use of the filtration material. The thickness of the aluminum foil is 0.03 mm, and the height of the waviness is 4mm, which ensures the filtration area and the quality of the filter.
  • The filtration material is high-density paper which consists of super fine fiberglass. Pleat the filtration paper ( made from fiberglass) to enlarge the filtration area as large as possible and to slow down the filtration speed. It is very important for the HEPA filter.
  • Laser testing one by one; Temp. resistance up to 80℃; Small resistance; Long service life.
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ

icon_gou

Ship Globally

Pleated HEPA Filter Applications:

1. Applied to the terminal filtration for the air-conditioning filtration system

2. Used in hospital, the electronic industry, food, precision instrument, electron semiconductors

Technical Data

Document Download

Pleated HEPA Filter.pdf



Specifications

Filter Media Ultrafine glass fiber filter
Frame Material Aluminum / Galvanized / Stainless Steel / Wooden
Sealants Pu two-component polyurethane adhesive
Separators Plastic paper / Foil
Optional Thickness (mm) 80 / 96 / 120 / 150 / 220 / 292 / 305
Maximum Temperature Plastic paper 50°C / Foil 100°C
Maximum Humidity 100%

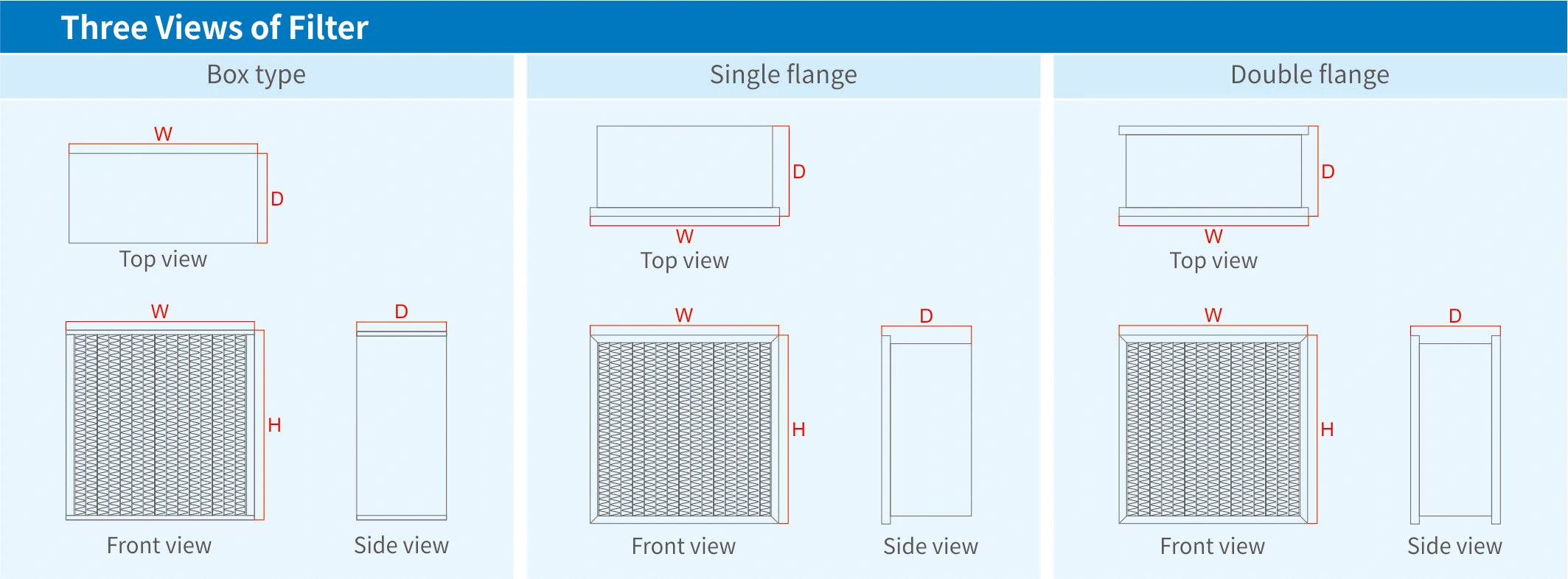

Filtration Grade Dimensions (mm) W*H* D Filter Area (㎡) Rated Air Flow (m³/h) Wind Velocity Test (m/s) Initial Resistance (Pa) Final Resistance (Pa)
M6 320*320*150 2.59 450 1.2 90 300
M6 484*484*220 9.46 1700 2.0
M6 305*610*292 10.52 1700 2.5
M6 610*610*292 21.25 3400 2.5
F7 320*320*150 2.59 450 1.2 130 300
F7 484*484*220 9.46 1700 2.0
F7 305*610*292 10.52 1700 2.5
F7 610*610*292 21.25 3400 2.5
F8 320*320*150 2.59 450 1.2 140 300
F8 484*484*220 9.46 1700 2.0
F8 305*610*292 10.52 1700 2.5
F8 610*610*292 21.25 3400 2.5
F9 320*320*150 2.59 450 1.2 150 300
F9 484*484*220 9.46 1700 2.0
F9 305*610*292 10.52 1700 2.5
F9 610*610*292 21.25 3400 2.5
H10 320*320*150 2.59 450 1.2 180 400
H10 484*484*220 9.46 1700 2.0
H10 305*610*292 10.52 1700 2.5
H10 610*610*292 21.25 3400 2.5
H13 320*320*150 2.59 350 1.0 250 500
H13 484*484*220 9.46 1250 1.5
H13 305*610*292 10.52 1700 2.5
H13 610*610*292 21.25 3400 2.5
H14 320*320*150 2.59 350 1.0 280 500
H14 484*484*220 9.46 1250 1.5
H14 305*610*292 10.52 1700 2.5
H14 610*610*292 21.25 3400 2.5



Filter Customization

Please send us your requirements to get custom sizes and thicknesses.
