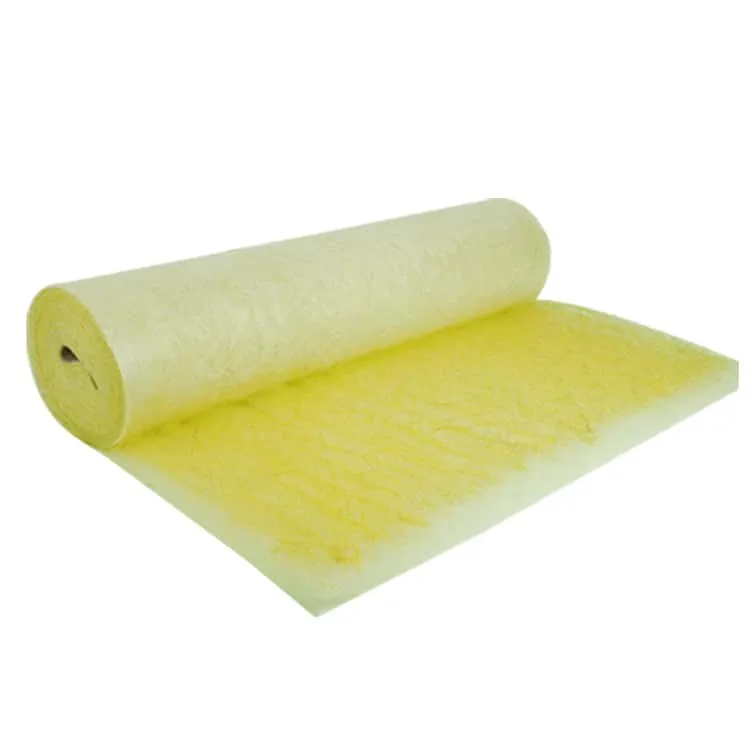

Clean-Link's paint booth floor fiberglass air filter media yellow color

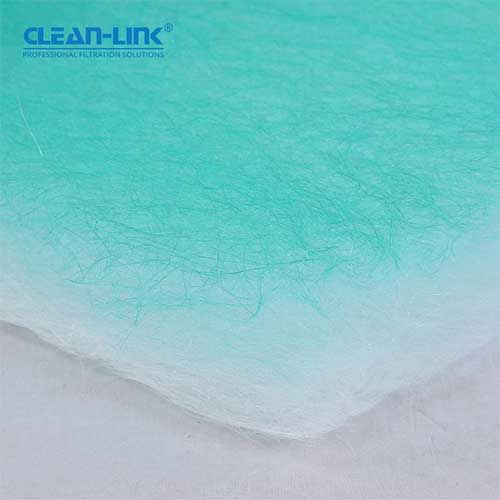

CleanLink's fiberglass air filter media material shows in close look, with green color on top and white color at the bottom
CleanLink's Fiberglass air filter media material rolls details

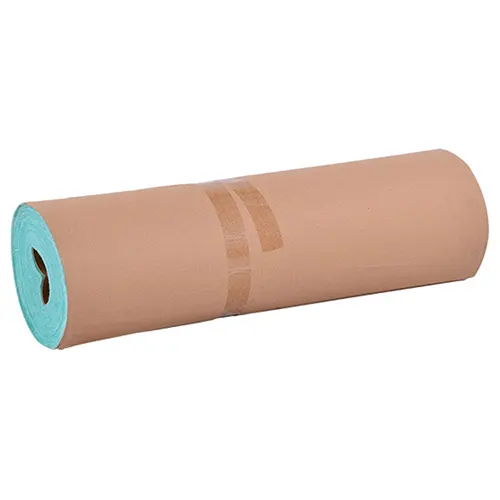

CleanLink's Paint stop floor Fiberglass filter media
Clean-Link's paint booth floor fiberglass air filter media green color
Clean-Link's paint booth floor fiberglass air filter media yellow color
CleanLink's fiberglass air filter media material shows in close look, with green color on top and white color at the bottom
CleanLink's Fiberglass air filter media material rolls details
CleanLink's Paint stop floor Fiberglass filter media

Paint Booth Filter Media Roll

ltem No.: PA-100

The fiberglass paint stop floor filter media consists of bouncy layers that are made of filament fiberglass. It is thermally bonded and internally linked to each other, forming graduated density following the airflow direction for high-depth filtration.

The ample and evenly distributed space between filament and layers allows a fast bounce-back after being compressed, which plays a vital role in capturing paint mist and adhesive dust.

Features:

  • Grade: G3; MERV5, MERV6
  • Filter material: Fiberglass
  • Excellent paint arrestor for paint booths
  • Fluffy and bouncy structure for high-depth filtration
  • Graduated density multi-layers ensure high dust-holding capacity
  • Corrosion resistance: Uniquely suited in high solvent, acid-base, and high-temperature conditions
  • Customizable media sizes and thicknesses for different spray paint booth/room settings
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ

icon_gou

Ship Globally

Paint Booth Fiberglass Floor Filter Media Applications:

· Automotive Paint Booths: capturing overspray generated during the painting process.

· Industrial Coating and Finishing: trapping paint and coating particles.

· Woodworking and Furniture Manufacturing: controlling overspray and removing particulates generated during staining, varnishing, and painting processes.

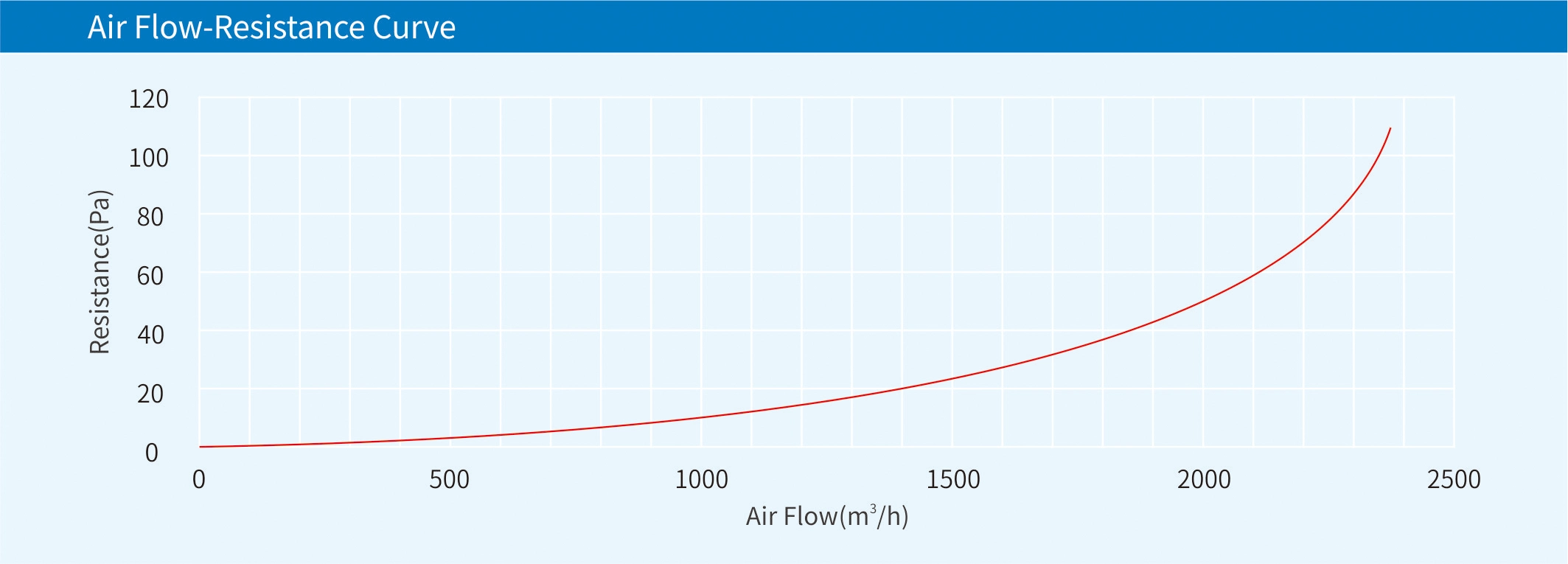

Technical Data

Document Download

Panit Stop Fiberglass Floor Filter Media.pdf



Specifications

Model PA-50/60 PA-100
Thickness (mm) 50/60 100
Weight (g/㎡) 240 320
Wind Velocity Test (m/s) 0.7-1.5 0.7-1.5
Initial Resistance (Pa) 15 20
Final Resistance (Pa) 250 280
Temperature Resistance (℃) 170 170
Dust Holding Capacity (g/㎡) 3200-3600 3600-4900
Average Weight Efficiency 93% 96%



Filter Customization

Please send us your requirements for custom sizes and thicknesses.
