Hot-melt Pocket Filter

The hot-melt pocket/bag filter is characterized by the use of hot-melt adhesive, which is a thermoplastic material, to secure the filter media in place within the filter frame.
The hot-melt adhesive is applied as a liquid and solidifies upon cooling, creating a strong bond between the filter media and the frame, which ensures that the filter media remains securely in position, even under high airflow conditions.
This bag filter media consists of a graduated multi-layer structure with each layer having a different density or filtration capability. Larger particles are captured near the surface, while smaller particles are caught in the denser, inner layers.

Features:

  • Grade: G3, G4, M5, M6, F7, F8, F9;
  • MERV5, MERV6, MERV7, MERV8, MERV9, MERV10, MERV11, MERV12, MERV13, MERV14
  • Frame options: Stainless steel, aluminum alloy, or ABS
  • Graduated density structure enhances efficiency
  • Secure seal at the connection ensures no air bypass or leaks under a high airflow rate
  • 3 small pockets in each row divert and equalize the airflow, keeping bags in shape for  better performance and lower energy consumption
  • Long filter service life and high dust-holding capacity
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ

icon_gou

Ship Globally

Hot-melt Pocket Air Filter Applications:

· Commercial Buildings: used in the HVAC systems of offices, malls, and hotels to maintain indoor air quality.
· Industrial Facilities: manufacturing and chemical production, often require effective air filtration for worker health and product quality.
· Hospitals and Healthcare: essential in healthcare settings to maintain sterile environments and protect patients and staff from airborne contaminants.
· Suitable for serving as a pre-filter in paint booths in the coating industry.

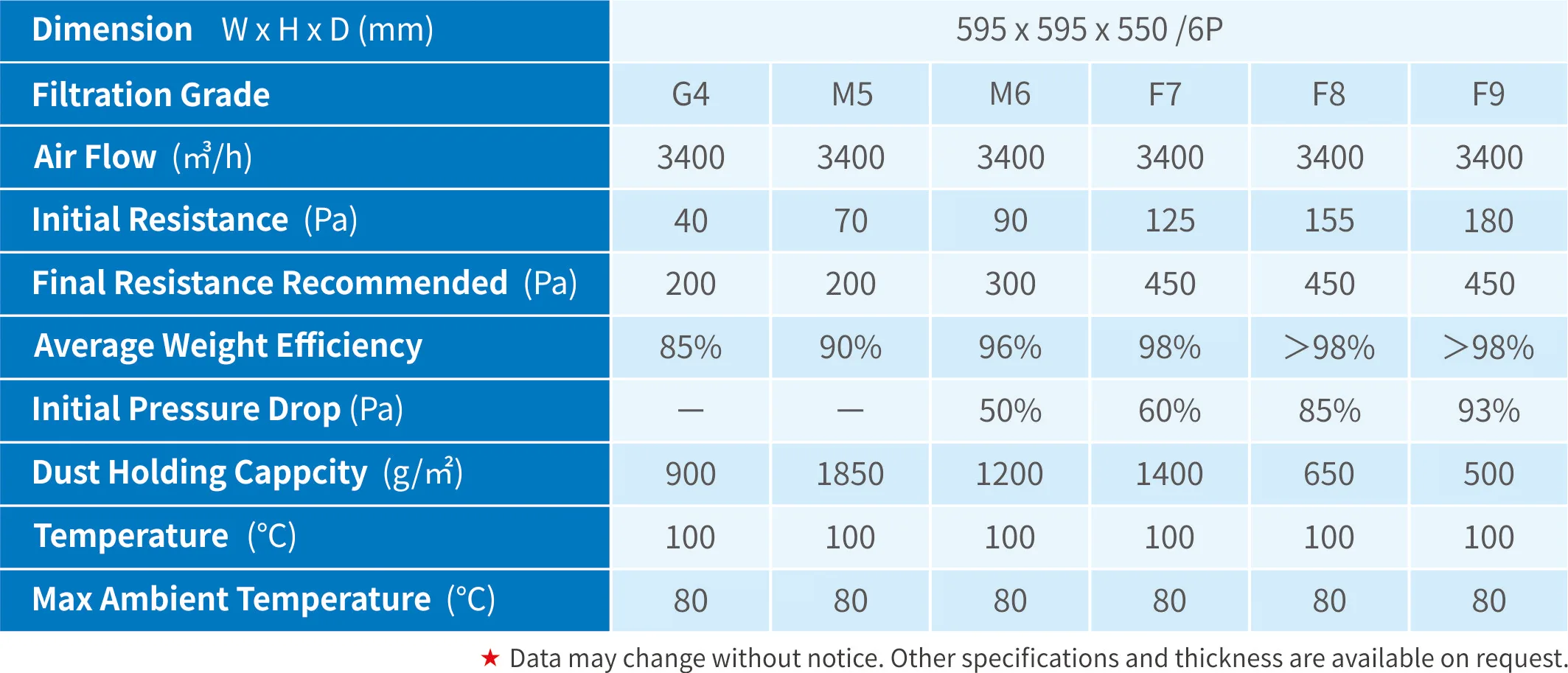

Specifications



Dimensions (mm) W*H* D 595*595*550 / 6P
Filtration Grade G4 M5 M6 F7 F8 F9
Air Flow (m³/h) 3400 3400 3400 3400 3400 3400
Initial Resistance (Pa) 40 70 90 125 155 180
Final Resistance Recommended (Pa) 200 200 300 450 450 450
Average Weight Efficiency 85% 90% 96% 98% >98% >98%
Initial Efficiency 50% 60% 85% 93%
Dust Holding Capacity (g/㎡) 900 1850 1200 1400 650 500
Temperature (℃) 100 100 100 100 100 100
Max Ambient Temperature (℃) 80 80 80 80 80 80

Document Download

Hot-melt Pocket Filter.pdf



Filter Customization

Please send us your requirements to get custom sizes and thicknesses.
