Synthetic Fiber Pocket Filter

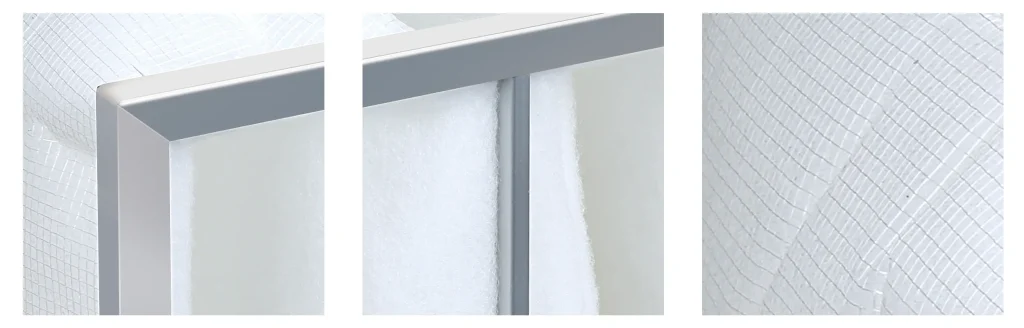

The pocket of this filter is made of special fibers that are structurally processed against fiber fracture to form graduated density for better performance. The pockets are securely sealed with the frame, avoiding air bypass or leaks, even with high airflow speed. The design of the pocket media features a function that is able to direct the airflow for the best filtration effect. This product excels in high-humidity environments, showcasing remarkable moisture resistance capabilities. It thrives in conditions where moisture levels are elevated.
Features:
- Filter Grade: G3, G4, M5
- MERV5, MERV6, MERV7, MERV8, MERV9, MERV10
- Filtration Media: synthetic fibers
- Frame options: Galvanized steel or aluminum
- The pockets consist of organic synthetic fibers that are resistant to fracture
- The graduated-density structure is able to direct the airflow for the best performance
- The frame and the pocket are properly sealed to prevent air bypass or leaks
- Great moisture resistance capability, withstanding 100% humidity environment
Free Sample
Customization Available
Low MOQ
Ship Globally
Synthetic Fiber Pocket/Bag Filter Applications:
· Paint Booths: This filter can be used as a first-stage filter for filtration systems in painting workshops or other painting applications.
· Commercial buildings: For filtration in HVAC systems.
· Industrial Facilities: Used as a pre-filter at the stage before HEPA filters.
Specifications
Filtration Grade | Dimensions (mm) W*H* D | Number of Bags | Filtration Area (㎡) | Rated Air Flow (m³/h) | Initial Resistance (Pa) | Final Resistance (Pa) |
G3 | 287*595*550 | 3 | 1.92 | 1700 | 30 | 200 |
G3 | 495*595*550 | 5 | 3.28 | 2600 | 30 | 200 |
G3 | 595*595*600 | 6 | 4.05 | 3400 | 30 | 200 |
G4 | 287*595*550 | 3 | 1.92 | 1700 | 45 | 250 |
G4 | 495*595*550 | 5 | 3.28 | 2600 | 45 | 250 |
G4 | 595*595*600 | 6 | 4.05 | 3400 | 45 | 250 |
Document Download
Synthetic Fiber Pocket Filter.pdf
Filter Customization
Please send us your requirements for custom sizes and thicknesses.
