Paint Booth Ceiling Filter Media FS-350G

ltem No.: FS-350G

The FS-350G is a flame-retardant filter that can withstand temperatures up to 120°C. It has a fire-resistant outer layer and is thermally bonded to create a progressive density that improves overspray filtration. The multiple layers of the filter maintain a high dust holding capacity while ensuring low pressure drop.

This ceiling filter media for paint booths is made from 100% polyester fibers and is impregnated with adhesives to increase tack. This results in an excellent overspray capturing capability. Particles are held by the tacky and progressively densified structure, which is ideal for creating even and steady airflow in the paint booth.

Features:

  • Grade: M5; MERV9, MERV10
  • Made of 100% polyester fibers
  • Gradual density layering Structure
  • Fully impregnated with adhesive tackifier
  • A fiberglass mesh layer reinforces the outlet side of the filter media
  • Trap and remove overspray, dust, and other contaminants from the air in a paint booth
  • High dust holding capacity, low air pressure drop
  • Compliant with DIN 53438-F1 and UL900-Class2
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ: 1 Roll

icon_gou

Ship Globally

Paint Booth Ceiling Filter Media Applications:

1. Automotive paint booths
2. Aerospace paint booths
3. General industry paint booths

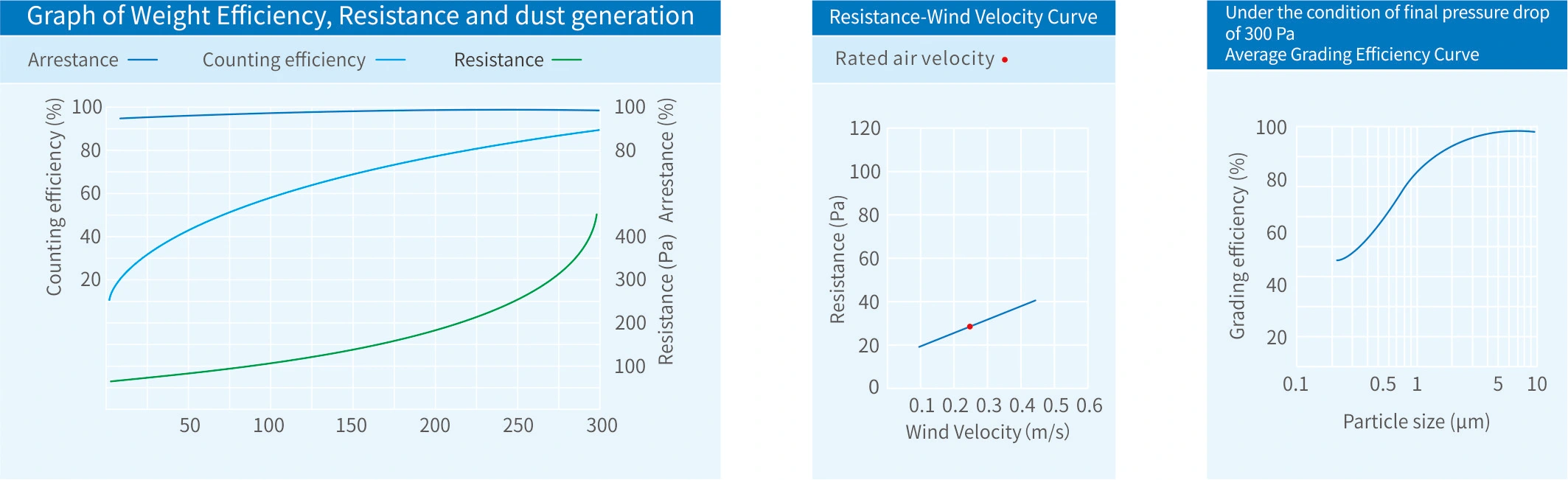

Technical Data

Document Download

Paint Booth Ceiling Filter Media FS-350G.pdf

Paint Booth Ceiling Filter Media FS-600G.pdf

Paint Booth Ceiling Filter Media FS-620G.pdf



Specifications

Material 100% POLYESTER FIBRES
Model FS-350G
Normal Thickness (mm) 20±3
Weight (g/㎡) 350
Wind Velocity Test (m/s) 0.25
Initial Resistance (Pa) 28
Final Resistance (Pa) 450
Average Weight Efficiency 90%
Rated Air Flow (m³/h) 900
Dust Holding Capacity (g/㎡) 400
Temperature Resistance (℃) 120
Filtration Grade M5

Filter Customization

Please send us your requirements to get custom sizes and thicknesses.
