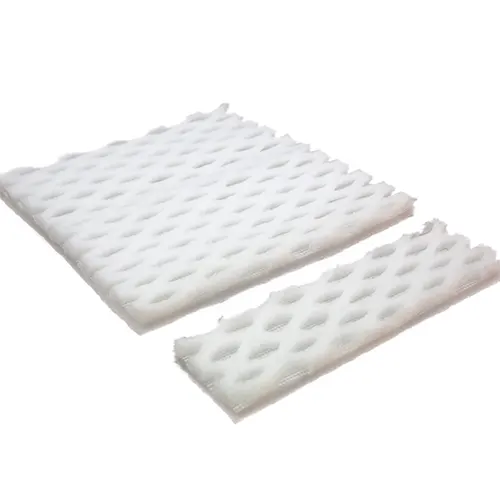

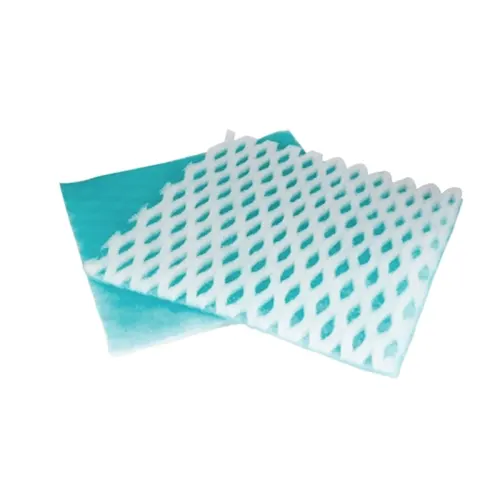

Paint Pockets Filter Media

Made with 100% synthetic fiber, paint pockets filter media is uniquely designed to trap paint spray and powder coating overspray in industrial or automotive applications.

The three-dimensional diamond-shaped structure on the surface increases the filter area by more than double, compared to flat-designed filters. More filter areas mean higher spray mist or powder holding capacity, allowing collectors to capture and hold much overspray. The structure prevents the filter from being saturated too early, resulting in a longer filter service life and higher arrestance performance before airflow restriction is reached.

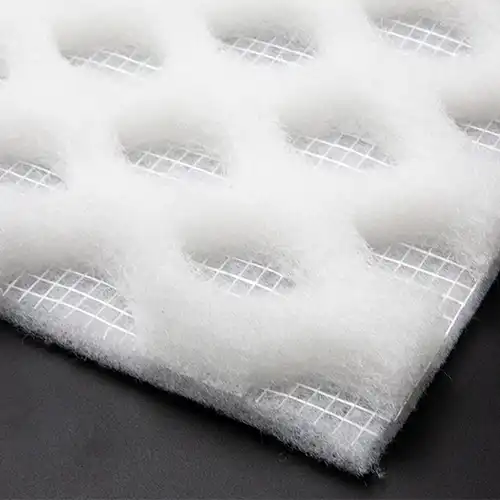

The bottom of the paint pockets filter media is composed of multiple high-density fiber layers that are able to effectively capture and retain even the tiniest overspray particles, which means more than 99.5% arrestance efficiency.

Thanks to its built-in grid pads that always maintain the shape, resisting twisting, bending, or breaking. Given the paint pockets filter media’s high performance, it is able to extend the lifespan of secondary more expensive air filters in the stream by 300%. Compared to fiberglass overspray arrestors, it has a high capture rate and reduces filter replacements.

Features:

  • Grade: G2, G3, G4; MERV5, MERV6, MERV7, MERV8
  • 100% synthetic fibers
  • High efficiency, cost-saving, exceptional overspray arrestor
  • The 3-dimensional structure increases more than double the filter area
  • High-density multi-layers at the bottom effectively capture and retain the tiniest particles
  • Cut down filter replacement frequency by 80%
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ

icon_gou

Ship Globally

Paint Pockets Filter Media Applications:

· Spray paint booth/room filters

· Capture and retain overspray/residues generated in high solid, powder, water-base paint, colorant, and adhesive painting processes

· Used as media for air filters

Technical Data

Document Download

Paint Pockets Filter Media.pdf

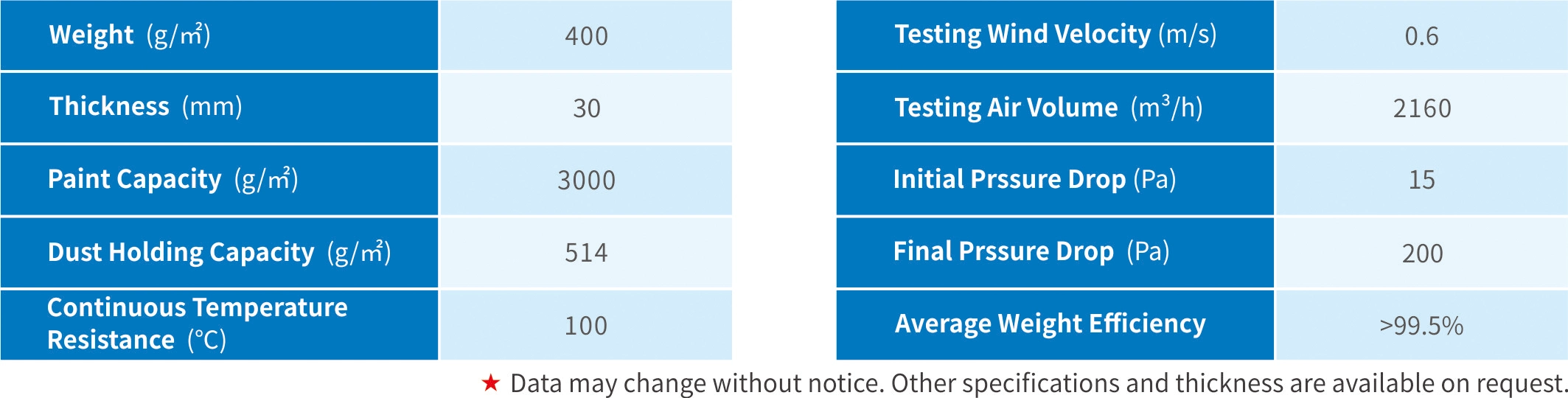

Specifications

Thickness (mm) 30
Weight (g/㎡) 400
Wind Velocity Test (m/s) 0.6
Initial Resistance (Pa) 15
Final Resistance (Pa) 200
Average Weight Efficiency >99.5%
Rated Air Flow (m³/h) 2160
Dust Holding Capacity (g/㎡) 514
Temperature Resistance (℃) 100
Paint Capacity (g/㎡) 3000



Filter Customization

Please send us your requirements to get custom sizes and thicknesses.
