home black iconHome / Products / High-Temperature Fiberglass Panel Air Filter

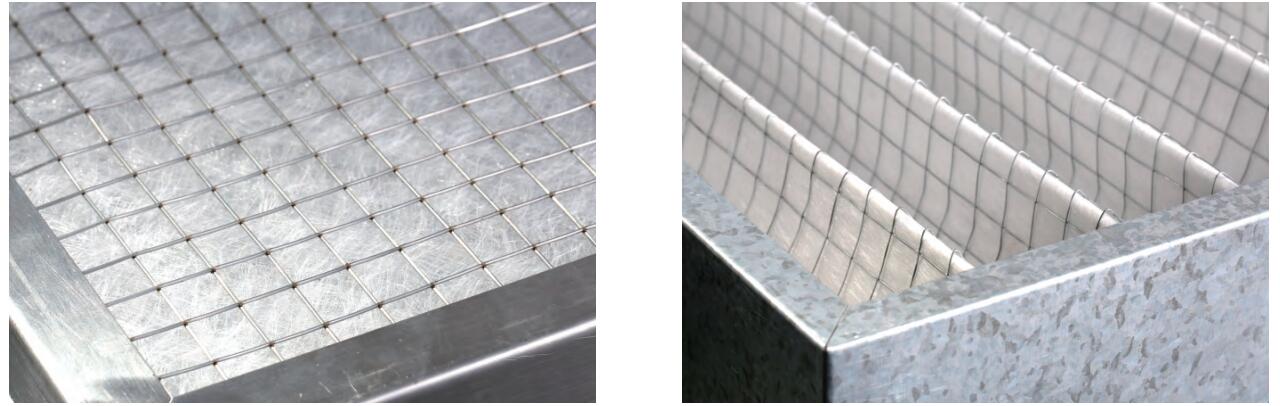

CleanLink's high temperature fiberglass panel filter
CleanLink's high temperature fiberglass panel filter

High-Temperature Fiberglass Panel Air Filter

Clean-Link fiberglass panel air filters are uniquely designed for high-temperature applications up to 300°C (575°F). The media of this high temp panel filter is composed of multiple layers that are formed by a random array of glass fibers. The nonwoven structure of this filter demonstrates good chemical and temperature resistance.

The fiberglass panel air filters are perfectly suitable for air filtration systems that are constantly subjected to very high-temperature conditions, so the filter must withstand extreme operating conditions. They are also exceptional in their resistance to chemical corrosion, with a low liquid loading rate.

Besides, this high temp fiberglass filter can be consistent and predictable during the service cycle, leading to a longer filter serving life and stable high efficiency.

We have developed unique fiber and processing combinations to improve filtration efficiency in all high-temperature applications. Aluminum, stainless steel, and galvanized frames are available for different requirements, which are self-extinguishing.

Features:

  • Grade: G3,G4
  • Material: Fiberglass
  • Frame options: Galvanized/stainless steel or aluminum
  • Designed for high-temperature applications up to 300°C (575°F)
  • Resistant to chemical corrosion and low liquid loading rate
  • Non-flammable frame material options: Aluminum, stainless steel, and galvanized metal
  • Customizable media sizes and thicknesses for special needs

icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ

icon_gou

High Quality

High-Temperature Fiberglass Panel Air Filter Applications:

· Industrial Processes:
Used in industries where manufacturing processes involve high temperatures, such as metalworking, ceramics production, and chemical processing.

· Furnaces and High-temperature Ovens :
Ideal for filtration in industrial ovens, kilns, and furnaces where air purity affects product quality.

· Power Generation:
Applied in power plants and energy generation facilities, where machinery operates at high temperatures.

· Automotive Industry:
Utilized in automotive paint curing ovens and exhaust filtration systems requiring heat resistance.

· Aerospace and Defense:
Suitable for air filtration in aerospace manufacturing and testing facilities, where components are exposed to high-temperature conditions.

SPECIFICATIONS

Filtration Grade Dimensions (mm) W*H* D Initial Resistance (Pa) Final Resistance (Pa) Wind Velocity Test (m/s) Average Weight Efficiency
G3 500*500*15 45 250 1.0 86%
G3 500*500*21 45 250 1.0 86%
G3 500*500*96 60 280 1.0 86%

Document Download

High-Temperature Fiberglass Panel Air Filter.pdf



Filter Customization

Please send us your requirements for custom sizes and thicknesses.
