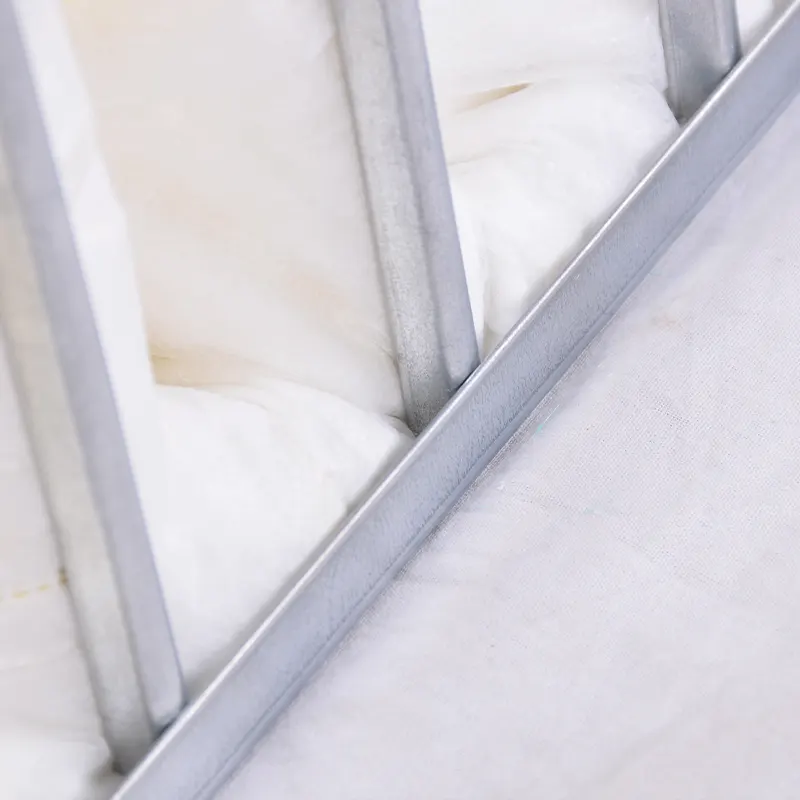

A detailed view of CleanLink's pocket filter
CleanLink's primary to medium efficiency pocket air filter
A detailed view of CleanLink's pocket filter

Primary/Medium Efficiency Pocket Filter

With its innovative design, this pocket/bag filter combines the benefits of a large surface area and deep filter pockets, making it highly efficient in capturing both particulate matter and fine dust particles.

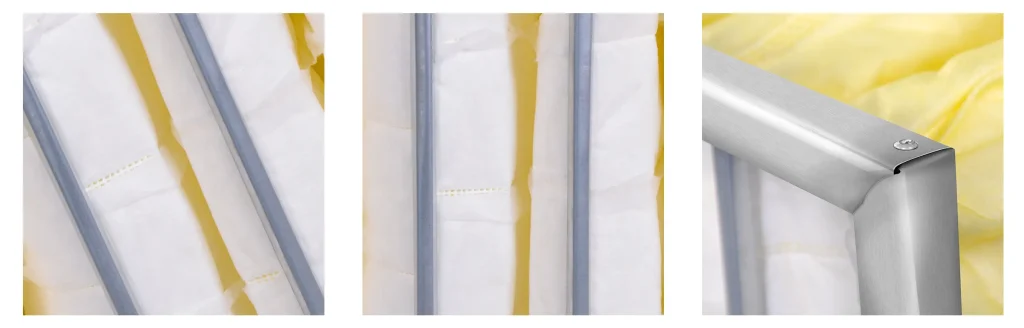

Every pocket/bag in the filter is reinforced by six layers of lining, preventing the bags from over-expanding, which causes overlaps between bags, reducing filter area and efficiency.

The connection between the pockets and the frame is hot-melt sealed to avoid leaks and the risk of breakage.

Features:

  • Grade: G4, M5, M6, F7, F8;
  • MERV7, MERV8, MERV9, MERV10, MERV11, MERV12, MERV13, MERV14
  • Frame options: Galvanized steel or aluminum alloy
  • Filter media: superfine synthetic fibers
  • Fibers are electrostatically charged to better trap particles
  • Properly sealed between media and frame to avoid air bypass
  • Low initial airflow resistance, high efficiency
  • Flame-retardant, temperature withstanding up to 80℃
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ

icon_gou

Ship Globally

Primary/Medium Efficiency Pocket Filter Applications:

· Used in medium-stage filtration in HVAC systems
· Secondary filtration in cleanrooms
· As pre-filter for HEPA filter
· Commercial and industrial settings, cleanrooms, laboratories, healthcare facilities, etc.

Specifications



Average Efficiency Media Color Dust Trap Rate Applications
30-35% White 92% Pre-filter for the middle-efficiency filter.
40-45% Orange 96% Commercial buildings, theatres, stations, airports.
60-65% Green 97% Spray-painted car room, school, computer room.
80-85% Pink 98% Petrochemical, plastics, pharmaceutical, food, painting, electronics factory, hospital, laboratory, clean room.
90-95% Yellow 99% The precision electronics industry, defense factories, sterile rooms, and aseptic workshops.

Filtration Grade Dimensions (mm) W*H* D Number
of Bags

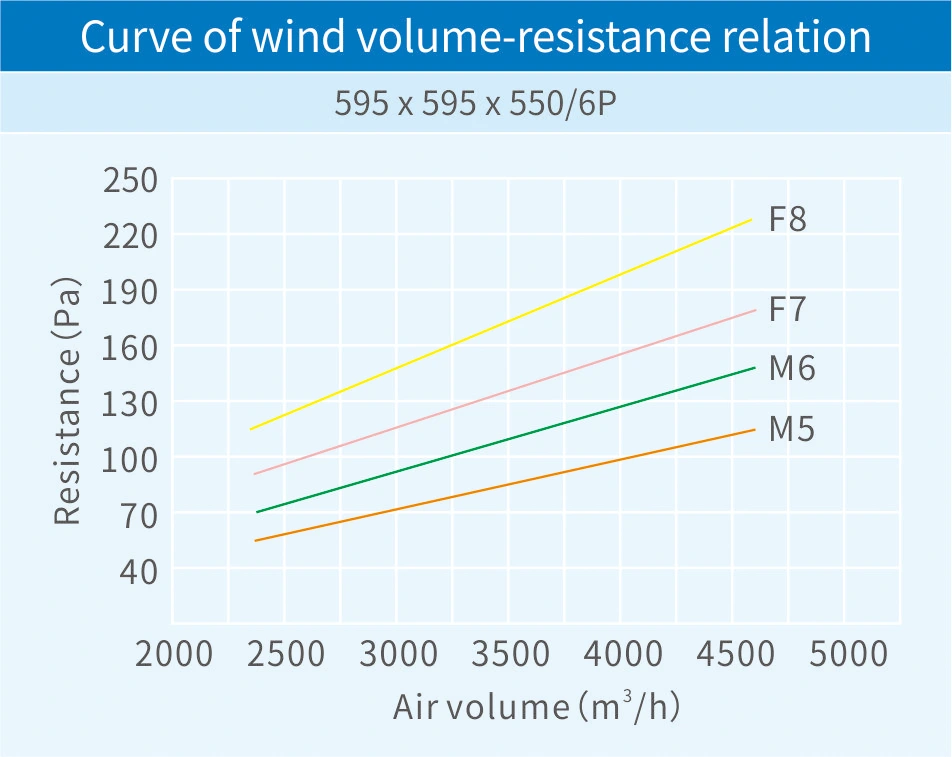

Filtration Area (㎡) Rated Air Volume (m³/h) Initial Resistance (Pa) Final Resistance (Pa)
35% (G4) 287*595*550 3 2.12 1700 40 350
35% (G4) 595*595*550 5 3.25 3400 45
35% (G4) 595*595*600 6 4.28 3400 40
45% (M5) 287*595*550 3 2.12 1700 45 400
45% (M5) 595*595*550 5 3.25 3400 50
45% (M5) 595*595*600 6 4.28 3400 45
65% (M6) 287*595*550 3 2.12 1700 50 400
65% (M6) 595*595*550 6 3.86 3400 65
65% (M6) 595*595*600 8 5.68 3400 65
85% (F7) 287*595*550 3 2.12 1700 90 400
85% (F7) 595*595*550 6 3.86 3400 100
85% (F7) 595*595*600 8 5.68 3400 100
95% (F8) 287*595*550 3 2.12 1700 115 450
95% (F8) 595*595*550 6 3.86 3400 120
95% (F8) 595*595*600 8 5.68 3400 120

Document Download

Primary/Medium Pocket Filter.pdf



Filter Customization

Please send us your requirements for custom sizes and thicknesses.
