Paint Booth Ceiling Filter Media AF-600G

ltem No.: AF-600G

This paint booth ceiling filter media is mostly used in the spraying industry, for spray paint systems and spray paint workshops and ventilation systems and equipment and electronics, chemicals, medicine, food processing, mineral processing, smelting, environmental protection, and various air conditioning systems.

Made of synthetic fibers, this media can be used as a prefilter or secondary filter to extend the service life of the main filter, cutting down replacement and maintenance costs.

Features:

  • Grade: M5; MERV9, MERV10
  • Made of 100% polyester fibers
  • Gradient Density Structure, the fiber density increases gradually toward clean air
  • Flame-retardant mesh on the surface side where clean air comes out
  • High dust-holding capacity
  • The surface is treated with an adhesive tackifier
  • Compliant with DIN 53438-F1 and UL900-Class2
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ: 1 Roll

icon_gou

Ship Globally

Paint Booth Ceiling Filter Media AF-600G Applications:

1. Industrial or commercial paint spray booths;
2. For applications in HVAC systems in electronics manufacturing, food processing, smelting, and chemical industry.

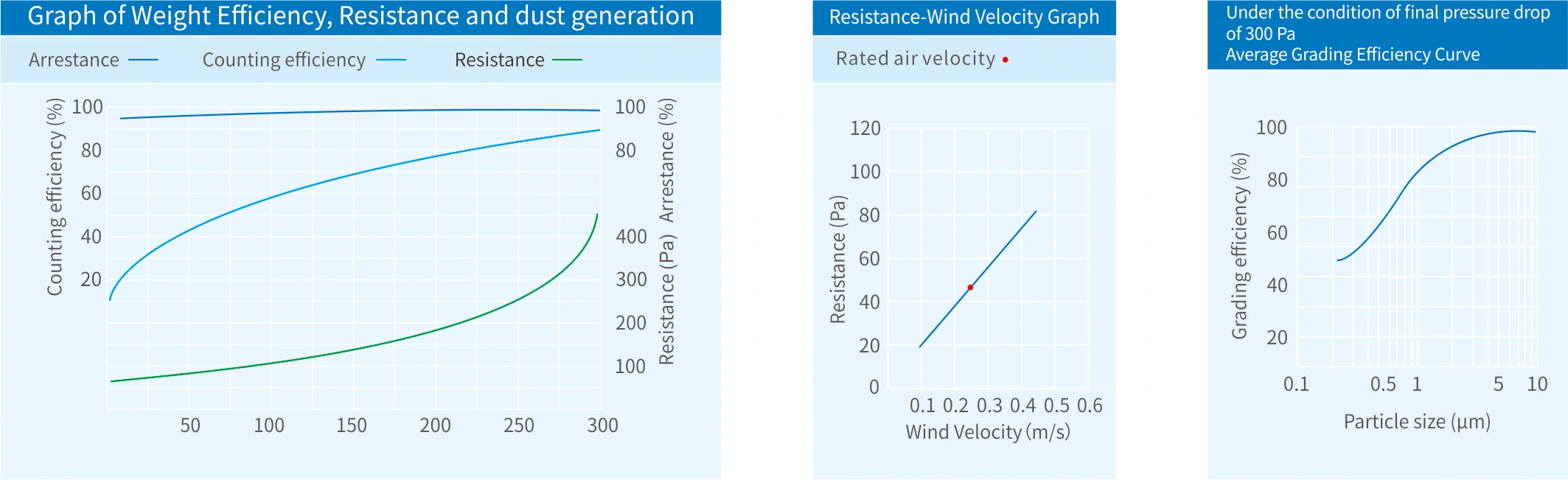

Technical Data

Document Download

Paint Booth Ceiling Filter Media AF-600G.pdf



Specifications

Material 100% POLYESTER FIBRES
Model AF-600G
Normal Thickness (mm) 20±3
Weight (g/㎡) 600
Wind Velocity Test (m/s) 0.25
Initial Resistance (Pa) 45
Final Resistance (Pa) 350
Average Weight Efficiency 95%
Rated Air Flow (m³/h) 900
Dust Holding Capacity (g/㎡) 520
Temperature Resistance (℃) 120
Filtration Grade M5



Filter Customization

Please send us your requirements for custom sizes and thicknesses.
