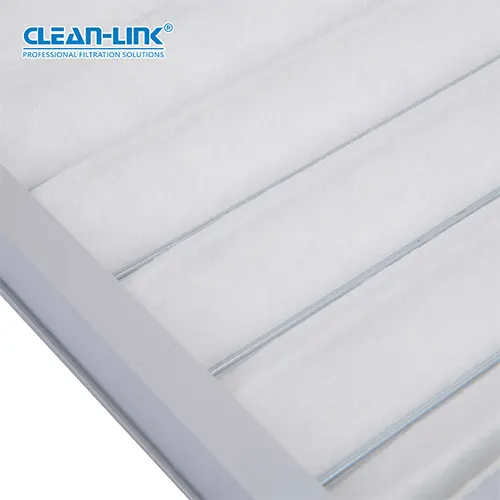

Washable Plank Air Filter
If you are on a time-based preventative filter cleaning schedule, meaning you need a clean filter at a certain frequency, but on a tight budget, this cleanable plank filter is an excellent choice for your HVAC.
Constructed with premium polyester synthetic fibers, these washable filters are good for being a prefilter or secondary filter to remove coarse particles, extending the service life of the final filter.
Clean-Link offers high-quality reusable plank air filters for sustainable maintenance, economical cost, and excellent filtration performance.
Features:
- Grade: G3, G4; MERV5, MERV6, MERV7, MERV8
- Material: polyester synthetic fibers
- Washable and durable air filter
- Frame options: aluminum, stainless steel, and galvanized steel
- Standard sizes W x H x D(mm): 595 x 595 x 46, 595 x 595 x 96
- Customizable filter sizes and specifications for special needs
Free Sample
Customization Available
Low MOQ
Ship Globally
Applications:
· Used as prefilter or secondary filter in general HVAC
· Air inlet filter or return air venting filter for cleanrooms
SPECIFICATIONS
We Support Personalization! To make customized sizes and thicknesses is available.
| Filtration Grade | Dimensions (mm) W*H* D | Rated Air Flow (m³/h) | Initial Resistance At Different Wind Speeds (Pa) | ||
| 70% | 100% | 120% | |||
| G3 | 595*595*46 | 3400 | 35 | 65 | 90 |
| 595*595*96 | 3400 | 30 | 55 | 75 | |
| G4 | 595*595*46 | 3400 | 50 | 85 | 110 |
| 595*595*96 | 3400 | 45 | 80 | 105 | |
| G5 | 595*595*46 | 3400 | 85 | 130 | 190 |
| 595*595*96 | 3400 | 75 | 105 | 145 | |
