Ceiling Filter CL-600G
Ceiling Filter CL-600G

Paint Booth Ceiling Filter Media CL-600G

ltem No.: CL-600G

CL-600G is engineered to be flame-retardant, withstanding temperatures as high as 120°C. The outer side of the media where cleaner air comes out, is covered by a layer of fire-resistant material.

This media is thermally bonded and constructed in a progressive density to perform better overspray filtration. The multiple layering structure maintains high dust holding capacity while ensuring lowest pressure drop performance.

Constructed from 100% polyester fibers, it’s gone through a process that is fully impregnated with formulating adhesives to increase tack on every single string of the media, resulting in an excellent overspray capturing capability. Particles or overspray are held by this tacky and progressively densified structure, which is ideal for forming even and steady airflow in the paint booth.


  • Grade: M5, F5; MERV9, MERV10
  • Made of 100% polyester fibers
  • Gradient density layering Structure
  • Fully impregnated with adhesive tackifier
  • A flame-retardant layer reinforces the outlet side of the filter media
  • High dust holding capacity, excellent overspray arrestor
  • Compliant with DIN 53438-F1 and UL900-Class2

Free Sample


Customization Available


Low MOQ: 1 Roll


Ship Globally

Paint Booth Ceiling Filter Media Applications:

1. Usually installed on the ceiling of industrial or commercial paint spray booths;

2. For use in HVAC systems in electronics manufacturing, food processing, smelting, and chemical industry.

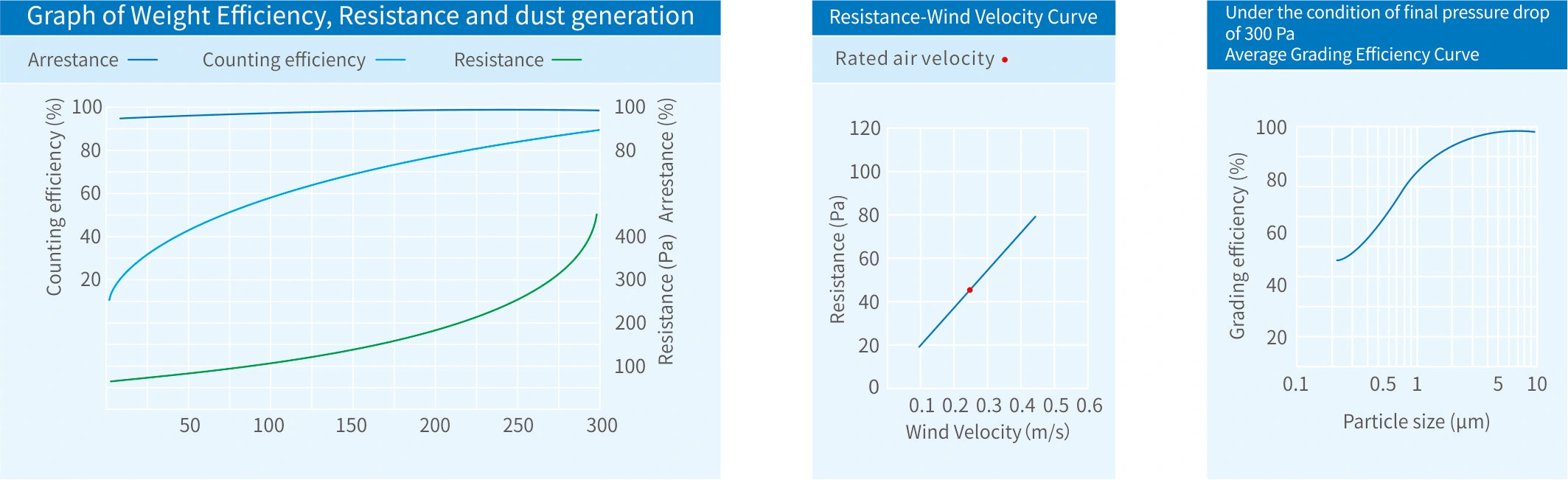

Technical Data

Document Download

Paint Booth Ceiling Filter Media CL-600G.pdf

Paint Booth Ceiling Filter Media C-600G.pdf



Model CL-600G
Regular Thickness (mm) 20±3
Weight (g/㎡) 600
Wind Velocity Test (m/s) 0.25
Initial Resistance (Pa) 30
Final Resistance (Pa) 400
Average Weight Efficiency 96%
Rated Air Flow (m³/h) 900
Dust Holding Capacity (g/㎡) 450
Temperature Resistance (℃) 120
Filtration Grade M5


Filter Customization

Please Please send us your requirements to get custom sizes and thicknesses.
