Achieving Airflow Uniformity in Large-Scale Paint Booths

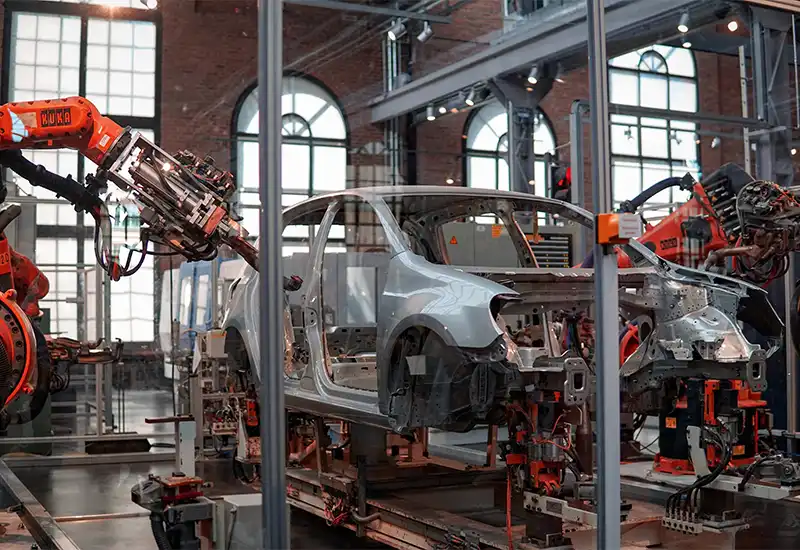

Image from Lenny-Kuhne

In the world of industrial painting, particularly in vehicle manufacturing, the significance of achieving uniform airflow in paint booths cannot be overstated. This aspect of paint booth design is crucial for ensuring high-quality finishes but presents unique challenges in large-scale operations.

What Is Airflow in A Paint Booth?

Airflow in a paint booth refers to the movement and direction of air through the booth during the painting process. How air moves across a paint booth can significantly impact both the quality of the paint job and the overall air quality within the booth.

Why Airflow Is Crucial

· Removing Overspray: During the painting process, overspray becomes airborne. Effective airflow captures this overspray, directing it through exhaust filters to prevent it from settling back onto the painted surface, thus avoiding defects.

· Maintaining a Stable Environment: Consistent airflow helps to maintain a stable environment inside the booth, ensuring a steady air stream for overspray removal.

Maintaining consistent airflow is crucial in preventing common paint defects like runs, sags, and dry spray. This ensures an even distribution of paint particles and consistent evaporation of solvents, essential for achieving a flawless finish.

Types of Airflow in Paint Booths

Crossdraft Airflow

Air enters on one side and exits on the opposite, flowing across the booth length. While a simple and economical design, it’s less effective in removing overspray from the painting area.

Downdraft Airflow

Air enters from the ceiling directly onto the floor, capturing overspray. This design concentrates airflow over the painted object, ideal for achieving high-quality finishes, and is highly effective in overspray removal.

Side Downdraft Airflow

Unlike full downdraft booths, this design exits air through sidewalls, eliminating the need for extensive ductwork and making it suitable for booths with space or budget constraints.

Semi-Downdraft Airflow

A hybrid of downdraft and crossdraft design, with air entering from the ceiling at one end and moving diagonally toward the opposite end.

The type of objects being painted, the desired quality of the finish, and the physical constraints of the facility are the factors that you should consider when choosing an airflow pattern for your paint booth.

Key Factors Determine Airflow in Paint Booth

1. Type of booth design

The placement of fans, vents, and exhausts, as well as the overall shape of the booth, are designed to facilitate specific airflow patterns (like crossdraft, downdraft, or side downdraft).

Read more: Paint Booth Types And The Differences

2. Type of Ventilation System

The volume and speed of air movement in the paint booth are controlled by the settings of fans and blowers, including their types and power. A more powerful system allows for higher volumes of air, making this particularly crucial for larger booths or those with strict air quality requirements.

3. Filter Placement and Type

You know that there are intake air filters and exhaust filters in paint booths. Intake filters clean incoming air, while exhaust filters capture overspray.

The position of these filters dictates the airflow within the booth. The quality of filters plays a crucial role in maintaining smooth airflow. Clogged or low-quality filters can disrupt the movement of air.

CleanLink offers premium paint booth filter media for intake and exhaust filters.

4. Object Being Painted

The airflow in a paint booth can be influenced by the size and shape of the object being painted. Larger objects may obstruct air movement, leading to stagnant air pockets. This consideration is crucial when choosing the optimal airflow pattern for a particular booth.

Challenges in Large-Scale Paint Booths

Image from Theycallmestretch-Reddit

There are challenges in maintaining uniform airflow in large-scale paint booths, particularly those used in vehicle manufacturing:

· Wind-Tunnel Effect

In expansive paint booths, particularly those accommodating entire vehicles, the ‘wind-tunnel’ effect can be a significant challenge.

This occurs when air moves faster in some areas than others, usually along the path of least resistance.

Solution: The design of the booth must ensure even distribution of airflow.

This might involve strategic placement of fans and vents, or using baffles and plenums to redirect and diffuse the airflow more evenly.

· Air Deflection and Disruption

The presence of large objects, such as vehicles, within the booth creates obstacles that can disrupt and deflect airflow.

This leads to areas of turbulent or stagnant air, which are not conducive to even paint application.

Solutions: Rotating or repositioning the object during the painting process can help achieve more uniform exposure to airflow.

Additionally, implementing a more sophisticated ventilation system that can adjust airflow dynamically based on the object’s orientation and size can be highly effective.

· Scale-Related Maintenance and Calibration

The sheer size of large-scale paint booths adds complexity to maintenance.

Ensuring that all parts of the system – from filters to fans – are functioning optimally is more challenging due to the scale.

Solutions: Regular calibration of the ventilation system is crucial.

This includes checking that fans operate at the correct speeds and that dampers and other airflow control mechanisms are correctly adjusted to maintain uniform air movement throughout the booth.

Best Practices for Paint Booth Operators

· Regularly monitor and adjust airflow patterns within the booth.

· Keep filters clean and replace them as needed to ensure they are not obstructing airflow.

· Conduct periodic maintenance checks on ventilation systems.

Conclusion

Achieving uniform airflow in large-scale paint booths is a complex but essential task. It requires a combination of well-designed equipment, regular maintenance, and an understanding of airflow dynamics.
