Paint Booth Ceiling Filter Media FS-620G

ltem No.: FS-620G

The FS-620G is a flame-retardant filter that can withstand temperatures up to 120°C. It has a fire-resistant outer layer and is thermally bonded to create a progressive density that improves overspray filtration. The multiple layers of the filter maintain a high dust holding capacity while ensuring low pressure drop.

The FS-620G is made from 100% polyester fibers and is impregnated with adhesives to increase tack. This results in an excellent overspray capturing capability. Particles are held by the tacky and progressively densified structure, which is ideal for creating even and steady airflow in the paint booth.


  • Grade: M5, M6; MERV9, MERV10, MERV11, MERV12
  • Made of 100% polyester fibers
  • Gradual density layering Structure
  • Fully impregnated with adhesive tackifier
  • A fiberglass mesh layer reinforces the outlet side of the filter media
  • Trap and remove overspray, dust, and other contaminants from the air in a paint booth
  • High dust holding capacity, low air pressure drop
  • Compliant with DIN 53438-F1 and UL900-Class2

Free Sample


Customization Available


Low MOQ: 1 Roll


Ship Globally


1. Automotive paint booths
2. Aerospace paint booths
3. General industry paint booths

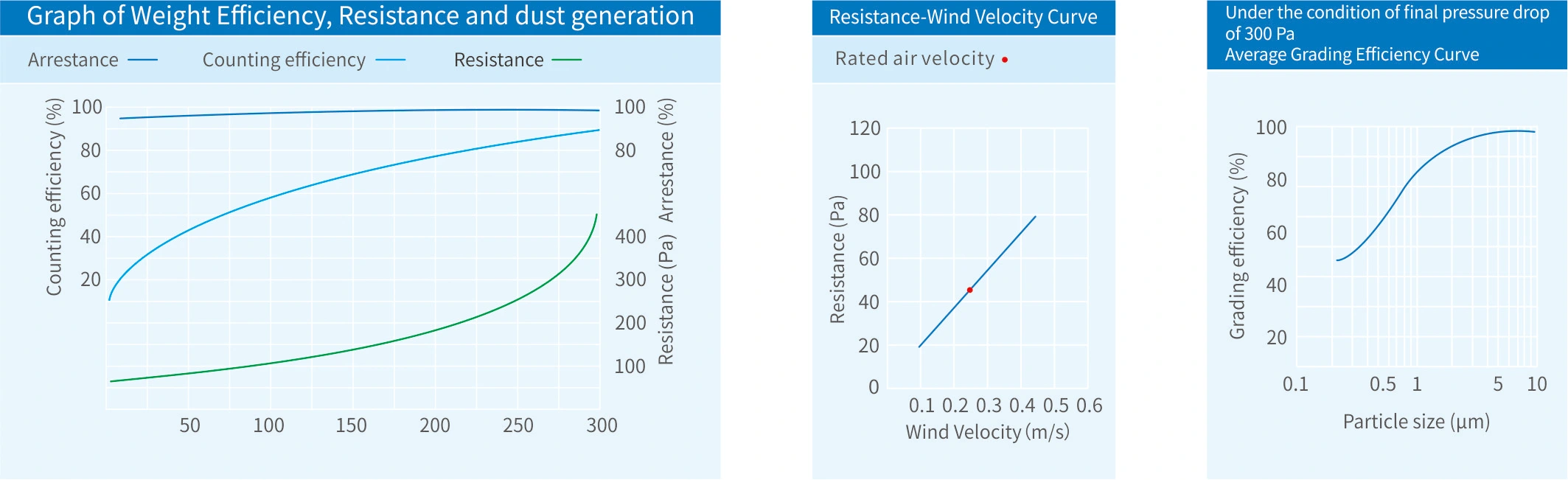

Technical Data

Document Download

Paint Booth Ceiling Filter Media FS-350G.pdf

Paint Booth Ceiling Filter Media FS-600G.pdf

Paint Booth Ceiling Filter Media FS-620G.pdf




Model FS-350G
Normal Thickness (mm) 20±3
Weight (g/㎡) 350
Wind Velocity Test (m/s) 0.25
Initial Resistance (Pa) 28
Final Resistance (Pa) 450
Average Weight Efficiency 90%
Rated Air Flow (m³/h) 900
Dust Holding Capacity (g/㎡) 400
Temperature Resistance (℃) 120
Filtration Grade M5

Send us your requirements to get custom sizes and thicknesses.
