Paint booths are essential for any business that does any painting. They help protect the environment and workers’ health by capturing overspray and fumes.

There are many different types of paint booths available, each with its own advantages and disadvantages. This post will discuss the different types of paint booths, the importance of air filtration, and how to choose the right paint booth for your needs.

What Is A Paint Booth?

A paint booth, also referred to as a spray booth, is a specially designed enclosure used in the painting and finishing processes of various objects and surfaces.

It provides a controlled environment where painters can apply paint or coatings to achieve high-quality and consistent finishes.

Paint booths come in different sizes and configurations, accommodating various industries and applications, such as automotive, aerospace, furniture, and industrial manufacturing.

How Many Types of Paint Booths Are There?

Each type of paint booth has pros and cons, making them suitable for various applications ranging from small projects to high-volume production. The choice of paint booth type depends on factors like the nature of the work, space availability, desired finish quality, and budget constraints.

The list below is the common paint booth types on the market.

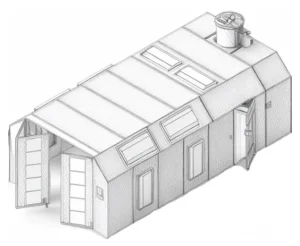

Crossdraft Paint Booth

Origin: STE

Crossdraft paint booths have incoming air that flows horizontally across the vehicle or object being painted. The air exits through exhaust filters on the opposite side of the booth.

These booths are simple in design and cost-effective, making them a popular choice for many applications. However, they may have some challenges with overspray control and uneven airflow distribution.

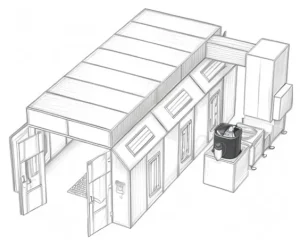

Downdraft Paint Booth

Origin: STE

In downdraft paint booths, air enters from the ceiling and is pulled downward, covering the entire vehicle or object being painted. The air is then exhausted through filters located on the floor.

Downdraft booths offer excellent overspray control and consistent airflow, leading to high-quality paint finishes. They are commonly used in professional automotive and industrial painting applications.

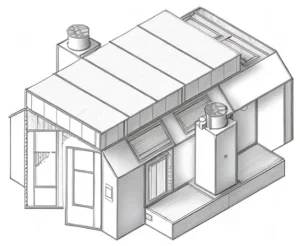

Side Downdraft Paint Booth

Origin: STE

Similar to downdraft booths, side downdraft paint booths have incoming air that enters from the ceiling. However, the air is pulled downward along the sides of the booth and is exhausted through filters on the floor.

Side downdraft booths offer good airflow and overspray control, providing a suitable option when a traditional downdraft booth is not feasible due to space limitations.

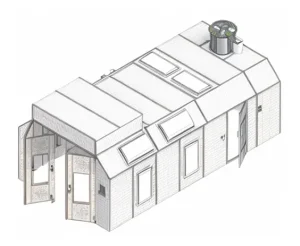

Semi-Downdraft Paint Booth

Origin: STE

Semi-downdraft paint booths combine elements of crossdraft and downdraft designs. The incoming air enters from the ceiling and is pulled downward through the center of the booth. The air then exits through filters located on the opposite side of the exhaust plenum.

Semi-downdraft booths are a compromise between crossdraft and downdraft booths, offering improved airflow direction and overspray control compared to crossdraft booths.

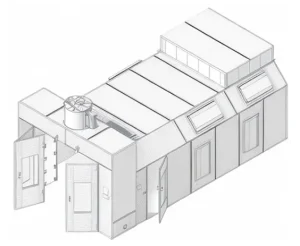

Reverse Flow Paint Booth

Origin: STE

Reverse-flow paint booths have the airflow direction opposite to traditional paint booths. The incoming air enters from the floor and is pulled upward and exhausted through filters in the ceiling.

These booths are designed to accommodate specific painting requirements, such as when working with heavier coatings or in specialized applications.

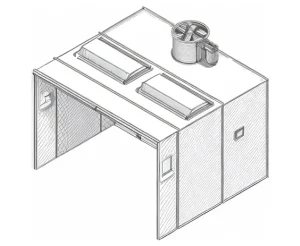

Open-Face Paint Booth

Origin: STE

Open-face paint booths have a simple design with no ceiling, allowing easy access to the painting area. They are commonly used for smaller projects or when space is limited.

However, open-face booths do not provide the same level of containment and overspray control as enclosed booths.

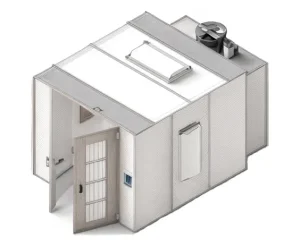

Enclosed Paint Booth

Origin: STE

Enclosed paint booths have walls and a ceiling, providing a controlled and isolated environment for painting. They offer excellent containment of overspray and are essential for maintaining clean air quality.

Enclosed booths are preferred for professional and high-quality painting applications.

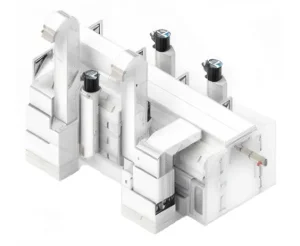

Conveyorized Paint Booth

Origin: SAIMA

Conveyorized paint booths are designed for large-scale production and automated painting processes. They feature a conveyor system that moves the objects to be painted through the booth, ensuring efficient and consistent coating application.

These booths are commonly used in industries where high-volume production and fast turnaround times are essential.

Paint Booth Type Comparison

Here is a comparison table of different types of paint booths with critical features.

Please note that the ratings for each feature are subjective and may vary based on specific paint booth models and configurations.

A chart listed different types of paint booths in comparison with multiple measure metrics--CleanLink

Why Is Air Filtration Important to Paint Booths?

In a paint booth, maintaining clean and contaminant-free air is crucial to achieving high-quality paint finishes, protecting employees, and complying with government regulations.

Air filtration systems play a vital role in removing these contaminants from the air, ensuring a controlled environment that minimizes the risk of defects in the paint finish. High-quality air filters effectively capture and trap these particles, preventing them from circulating and settling on painted surfaces.

These airborne particles can settle on wet paint surfaces, causing imperfections and blemishes that affect the overall finish of the painted product.

Contaminants Removal

During the painting process, various contaminants can be present in the air, such as dust, dirt, lint, and overspray particles.

Air filtration ensures the removal of these contaminants from the air, maintaining a clean and controlled environment for flawless paint application.

Health and Safety

The use of paints, coatings, and solvents in paint booths can release volatile organic compounds (VOCs) and hazardous fumes.

Prolonged exposure to these harmful substances can pose serious health risks to painters and other personnel in the vicinity.

Compliance with Regulations

Paint booths are subject to strict environmental and safety regulations to minimize environmental impact and protect workers.

Adequate air filtration is often a mandatory requirement to meet these regulations.

What Types of Air Filter Do They Use?

Different paint booth types have unique airflow patterns and specific contaminant challenges, so selecting the appropriate air filter is crucial to ensure efficient and effective filtration.

Here are some guidelines for choosing air filters for specific paint booth types:

Crossdraft Paint Booth

Air Filter Type: High-efficiency intake filters (usually with a lower pressure drop) are recommended for crossdraft paint booths. These filters should be capable of capturing overspray and contaminants efficiently.

Filter Placement: The intake filters should be strategically placed at the entrance of the paint booth to capture contaminants before they reach the painted surface.

Downdraft Paint Booth

Air Filter Type: Downdraft paint booths require intake and exhaust filters. Intake filters should be efficient in capturing overspray, while exhaust filters need to provide excellent airflow with high paint-holding capacity.

Filter Efficiency: Look for filters with high filtration efficiency to ensure maximum removal of airborne contaminants.

Filter Design: Pleated filters are often preferred for downdraft booths due to their extended surface area and better paint-holding capacity.

Side Downdraft Paint Booth

Air Filter Type: Similar to downdraft booths, side downdraft paint booths require both intake and exhaust filters. Intake filters should efficiently capture overspray and contaminants.

Exhaust Filters: Opt for high-quality exhaust filters that provide excellent filtration while maintaining optimal airflow.

Semi-Downdraft Paint Booth

Air Filter Type: Semi-downdraft booths require both intake and exhaust filters. Intake filters should efficiently capture overspray and contaminants.

Exhaust Filters: Choose filters that offer high paint holding capacity to maintain proper airflow throughout the booth.

Reverse Flow Paint Booth

Air Filter Type: Reverse flow paint booths need specialized intake filters designed to handle the unique airflow direction. These filters should efficiently capture contaminants without disrupting the reverse airflow pattern.

Open-Face Paint Booth

Air Filter Type: Open-face booths require intake filters that efficiently capture contaminants and overspray. They should be easily replaceable due to the frequent need for filter changes.

Enclosed Paint Booth

Air Filter Type: Enclosed paint booths often have multiple filters, including intake and exhaust filters. Select filters that provide high filtration efficiency and maintain optimal airflow.

Conveyorized Paint Booth

Air Filter Type: Conveyorized booths may require specialized filters to accommodate the continuous production line and handle high volumes of overspray.

By recognizing the unique demands of each paint booth type and considering factors such as filter efficiency, pressure drop, paint holding capacity, and compatibility, paint booth owners can enhance their overall operations.

Collaboration with air filtration experts and manufacturers is a good idea, as it can lead to tailored filtration solutions that align with your specific booth requirements.

Clean-Link Paint Booth Air Filter Media

Clean-Link offers a wide range of air filters and filter media rolls or mats for paint booth applications.

Made of synthetic fiber. Great paint mist capture ability.

Made of fiberglass. Excellent overspray arrestor.

Able to maintain stable airflow for better product finishing.

Pocket-shaped structure makes the filter surface twice larger than other paint booth media.

Conclusion

Understanding the significance of air filtration in different types of paint booths is paramount to achieving impeccable paint finishes, safeguarding the health of painters and workers, and ensuring the overall efficiency of the painting process.

The diverse array of paint booth types, each with its own airflow patterns and challenges, necessitates careful selection of appropriate air filters.

Clean-Link’s paint booth air filter media is engineered for capturing overspray in different paint booth settings and meets all the requirements for any type of paint booth. Talk to our expert for custom air filtration for your needs.
