Paint Pocket Bag Filter

The paint pocket bag air filter is engineered with a special structure that effectively captures overspray, fine particles, and contaminants generated during the painting processes, preventing them from contaminating the surrounding air or compromising the quality of the finished product.

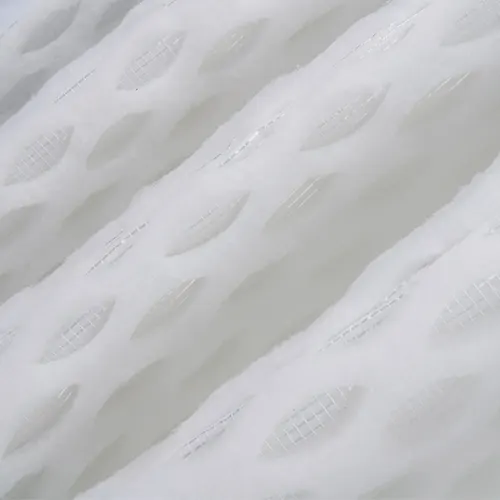

The diamond-shaped little "pockets" increase the contact area for effectively capturing overspray, removing a minimum of 99.8% of overspray as small as 10 microns (µm) in size.

Paint pocket bag air filters are known for their excellent overspray arrestor capacity and long service life, making them a cost-effective choice for maintaining superior air quality in paint booths.


  • Filter Grade: G3, G4; MERV5, MERV6, MERV7, MERV8
  • Filtration Media: synthetic fibers
  • Frame options: Galvanized steel or aluminum
  • “Pockets” on the media increase the surface area of the filter, allowing a higher capture rate
  • Utilizes a multi-layered, graduated-density media structure, which enhances performance and prolongs filter life
  • Effectively removes 99.8% of overspray with a size of 10 microns(µm)

Free Sample


Customization Available




Ship Globally

Paint Pocket Bag Filter Applications:

· Paint Booths: Widely used in automotive repair and refinishing shops, woodworking and furniture manufacturing, and metal Fabrication to capture overspray from paint spraying.
· Industrial Coating and Finishing: Various industrial applications that involve coating or finishing of products.
· General Manufacturing: For any manufacturing process that involves the application of coatings, finishes, or paints.

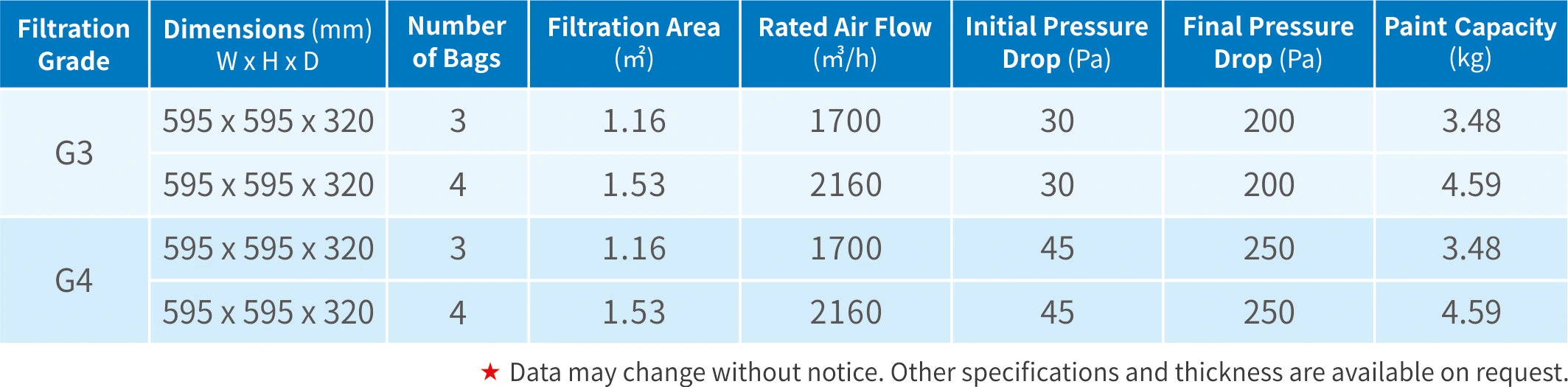

Filtration Grade Dimensions (mm) W*H* D Number of Bags Filtration Area (㎡) Rated Air Flow (m³/h) Initial Resistance (Pa) Final Resistance (Pa) Paint Capacity (kg)
G3 595*595*320 3 1.16 1700 30 200 3.48
G3 595*595*320 4 1.53 2160 30 200 4.59
G4 595*595*320 3 1.16 1700 45 250 3.48
G4 595*595*320 4 1.53 2160 45 250 4.59


Document Download

Paint Pocket Bag Filter.pdf



Filter Customization

Please send us your requirements for custom sizes and thicknesses.
