home black iconHome / Products / Pre-Filter Plank Mesh

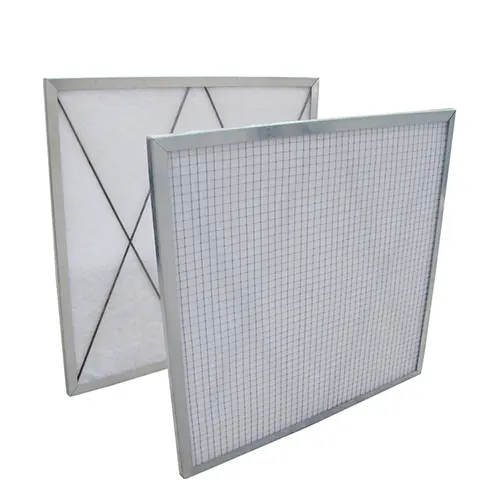

Pre-Filter Plank Mesh

Pre-filtration and second filtration for the ventilation system of the air conditioning, the filtration for entering or returning the air in the clean room.

Characteristic

  • high air flow rate, low initial pressure drop, high dust holding capacity, long operating life
  • The material is the coarse efficiency filter media with metal frame
  • Easy assembly in air conditioning equipment
  • Good ventilation property, small resistance
  • Temperature resistance 80°C
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ

icon_gou

Ship Globally

Functions:

Pre-filtration and second filtration for the ventilation system of the air conditioning, the filtration for entering or returning the air in the clean room.

Pre-Filter Plank Mesh

SPECIFICATIONS

Filtration Grade Dimensions (mm) W*H* D Initial Resistance (Pa) Final Resistance (Pa) Rated Air Flow (m³/h)
G3 595*595*20 35 120 1900
G3 290*595*20 35 120 1000
G3 595*595*46 35 120 3400
G3 290*595*46 35 120 1700
G4 595*595*25 45 150 1900
G4 290*595*25 45 150 1000
G4 595*595*46 45 150 3400
G4 290*595*46 45 150 1700

Filter Customization

Please send us your requirements to get custom sizes and thicknesses.
