Paint Booth Ceiling Filter Media S-560G
ltem No.: S-560GThis paint booth ceiling filter media is a high-performance solution for maintaining clean and safe air in paint booths. Made from 100% polyester fibers, it offers exceptional durability and filtration efficiency. The progressive density layering structure ensures effective capture and removal of overspray, dust, and contaminants from the air.
With a temperature resistance of up to 100°C, it withstands the demanding conditions of paint booth environments. The addition of a tacky mesh layer reinforces the outlet side, enhancing durability and performance. This media exhibits a high dust holding capacity while maintaining low air pressure drop, ensuring optimal airflow and energy efficiency.
It serves as an excellent paint overspray arrestor, contributing to superior paint finish results. It meets strict fire safety and filtration performance requirements. Experience the reliability and quality of our paint booth ceiling filter media for a cleaner and more productive painting environment.
Features:
- Grade: M5; MERV9, MERV10
- Made of 100% polyester fibers
- Progressive density layering Structure
- Withstanding temperatures as high as 120°C
- A tacky mesh layer reinforces the outlet side of the filter media
- Capture and remove overspray, dust, and other contaminants from the air in a paint booth
- High dust holding capacity, low air pressure drop, excellent paint overspray arrestor
- Compliant with DIN 53438-F1 and UL900-Class2
Free Sample
Customization Available
Low MOQ: 1 Roll
Ship Globally
Applications:
1. Automotive paint booth and refinishing workshop
2. Industrial painting
3. Aerospace industry

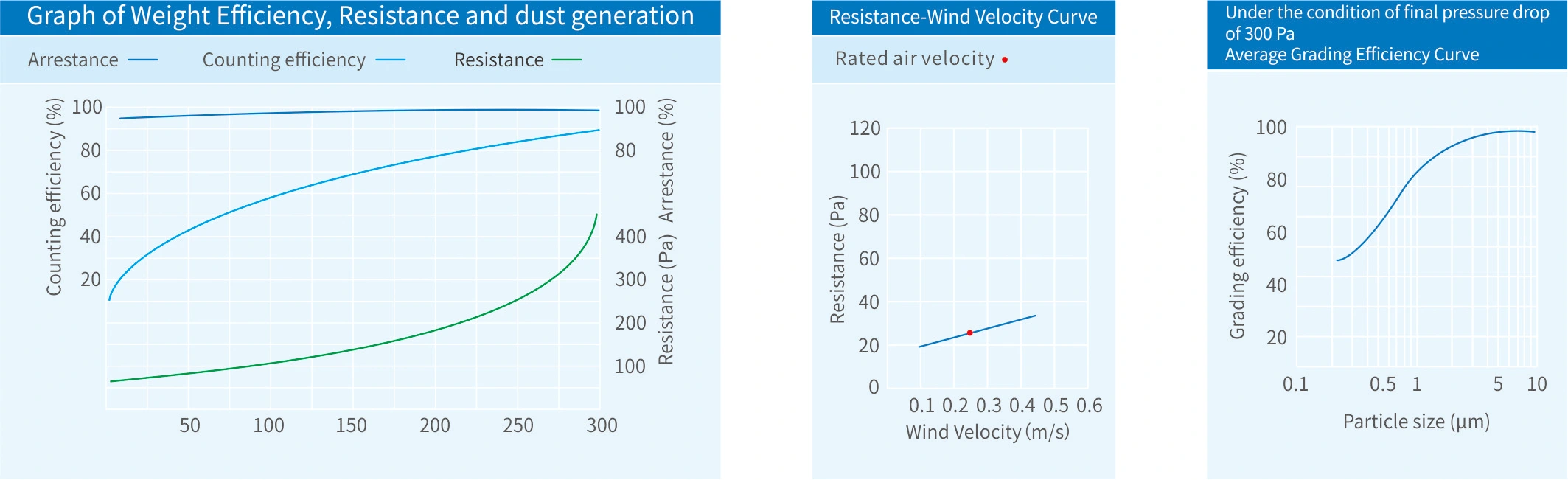

Technical Data
Document Download
Paint Booth Ceiling Filter Media S-560G.pdf
Paint Booth Ceiling Filter Media S-600G.pdf
Specifications
Material | 100% POLYESTER FIBRES |
Model | S-560G |
Normal Thickness (mm) | 20±3 |
Weight (g/㎡) | 560 |
Wind Velocity Test (m/s) | 0.25 |
Initial Resistance (Pa) | 25 |
Final Resistance (Pa) | 300 |
Average Weight Efficiency | 94% |
Rated Air Flow (m³/h) | 900 |
Dust Holding Capacity (g/㎡) | 380 |
Temperature Resistance (℃) | 120 |
Filtration Grade | M5 |
Send us your requirements to get custom sizes and thicknesses.
