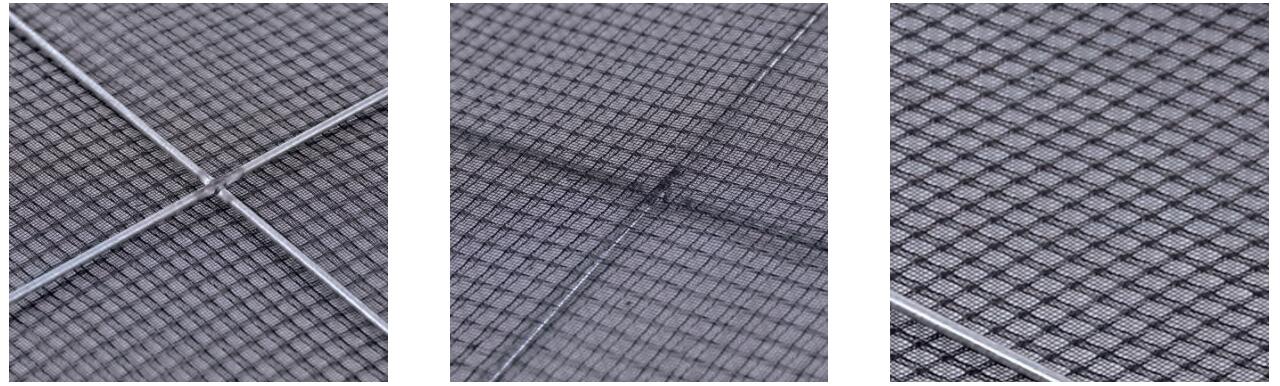

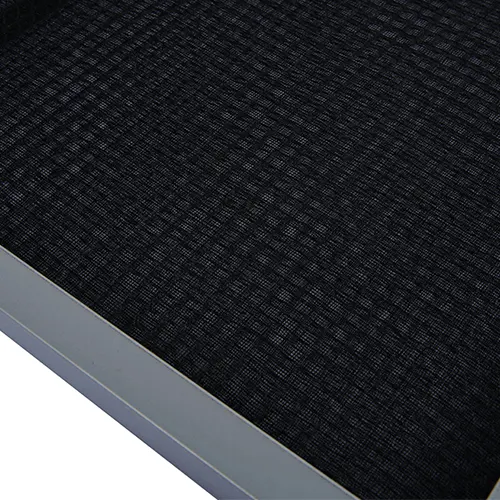

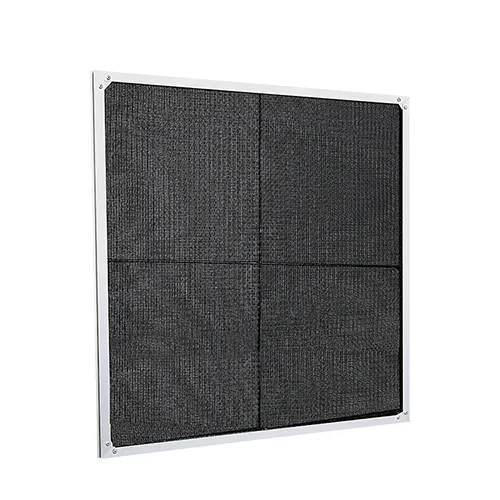

Nylon Filter Mesh

ltem No.: CL-N

This nylon filter mesh is structurally reinforced for better filtration and is easy to clean.
Capturing dirt, dust, and other particles, they are widely used in fan units, diffusers, and indoor equipment with a large airflow; Applied to the pre-filtration of the air condition system and the clean room.

Features:

  • Grade: G1, G2
  • Frame options: Aluminum alloy and galvanized steel
  • Adequate and stable airflow and low resistance
  • Maintains original filtration capability after cleaning
  • The reusable feature allows low maintenance cost
  • Higher temperature and moisture resistance
  • High acid and alkali resistance
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ

icon_gou

Ship Globally

Applications:

Pre-filtration filter for Air conditioning system, blocking larger particles from the air before entering secondary or main filters that are more expensive.

SPECIFICATIONS

Available thickness: 7/10/15/20/45MM

5. Media layers: 1/2/3/5/7/9

Model Dimensions (mm) W*H* D Rated Air Flow (m³/h) Initial Resistance (Pa) Outer Frame
595*595*10 3600 5 Aluminum Galvanized
CL-N 595*495*10 3400
495*495*10 3200

Filter Customization

Please send us your requirements to get custom sizes and thicknesses.
