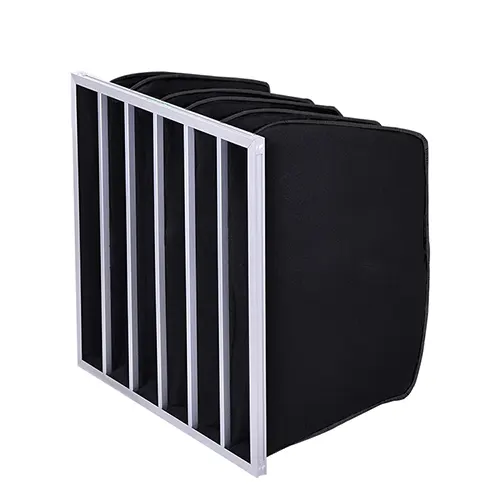

CleanLink's activated carbon pocket filter

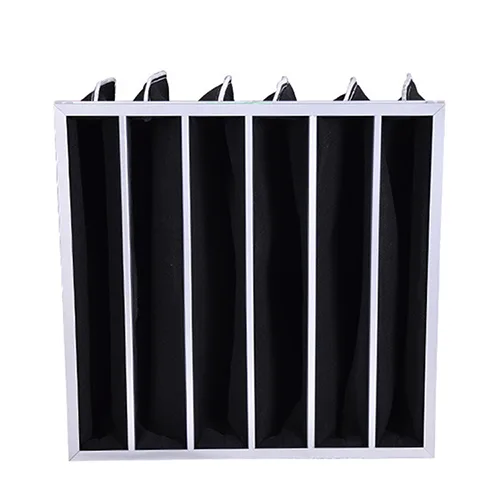

A front look at CleanLink's activated carbon pocket filter

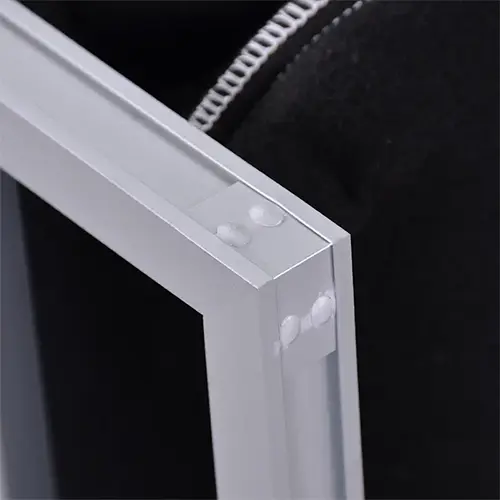

A detailed view of the outter frame of CleanLink's activated carbon pleat panel filter

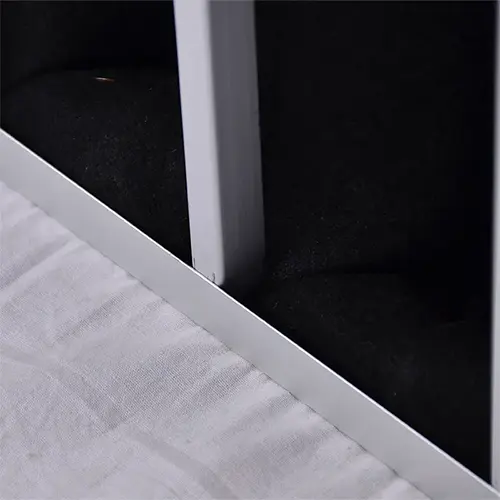

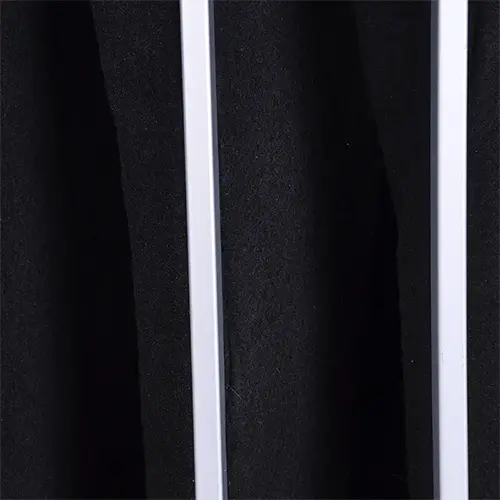

A detailed view of CleanLink's activated carbon pleat panel filter
A detailed view of CleanLink's activated carbon pleat panel filter
CleanLink's activated carbon pocket filter
A front look at CleanLink's activated carbon pocket filter
A detailed view of the outter frame of CleanLink's activated carbon pleat panel filter
A detailed view of CleanLink's activated carbon pleat panel filter
A detailed view of CleanLink's activated carbon pleat panel filter

Activated Carbon Pocket Filter

CleanLink's activated carbon bag filters are perfect for removing various odors, gases, and volatile organic compounds (VOCs) from the air.
Activated carbon pocket filters consist of a robust bag or pocket-like structure, which has an immense surface area that readily adsorbs fumes and traps airborne contaminants.
Whether you need to eliminate unwanted odors, reduce harmful chemical exposures, or maintain a clean and fresh environment, activated carbon bag filters are a reliable and versatile choice for achieving more hygienic and healthier air.

Features:

  • Grade: G3, G4
  • Material: impregnated carbon fibers
  • Frame options: Galvanized or stainless steel, aluminum alloy
  • Vast surface area, excellent adsorption efficiency, and adequate airflow
  • Removes odors, volatile organic compounds (VOCs), chemicals, gases
icon_gou

Free Sample

icon_gou

Customization Available

icon_gou

Low MOQ

icon_gou

Ship Globally

Activated Carbon Pocket Filter Applications:

· Typically used in HVAC systems to remove gaseous contaminants and airborne particles, creating a comfortable indoor environment

· Most used industries: commercial buildings, pharmaceuticals, healthcare facilities, food process, education, etc.

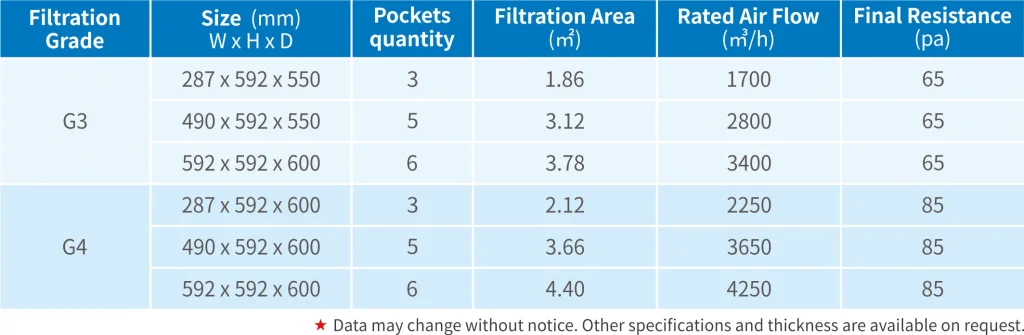

Specifications



Filtration Grade Dimensions (mm) W*H* D Bags Quantity Filtration Area (㎡) Rated Air Volume (m³/h) Final Resistance (Pa)
G3 287*592*550 3 1.86 1700 65
G3 490*592*550 5 3.12 2800 65
G3 592*592*600 6 3.78 3400 65
G4 287*592*600 3 2.12 2250 85
G4 490*592*600 5 3.66 3650 85
G4 592*592*600 6 4.40 4250 85



Document Download

Activated Carbon Pocket Filter.pdf



Filter Customization

Please send us your requirements for custom sizes and thicknesses.
